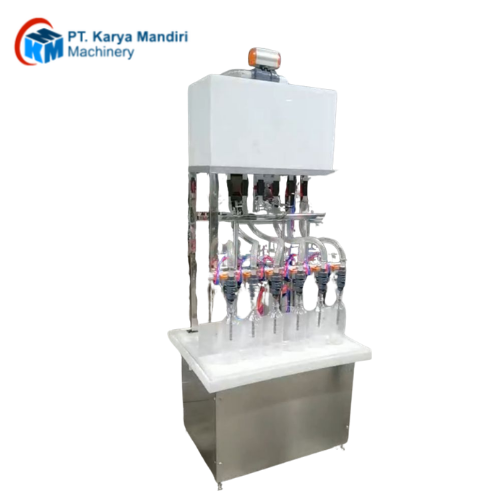

The automatic anti-corrosion liquid filling machine is suitable for filling corrosive materials in various special-shaped bottles. The charging operation is simple and convenient. It is suitable for corrosive materials such as toilet cleaners, pesticides, alcohol, disinfectant 84, insecticides, descaling agents, etc.
Features
1. This equipment is specially designed for filling strong acid materials such as toilet cleaner, etc.
2. The whole machine contact parts and materials are all made of PVC material, without any metal parts. The stainless steel shell is covered with a protective layer to avoid acid corrosion.
3. The equipment is equipped with a suction pipe, which can automatically fill materials, saving filling steps.
4. The large diameter filling mouth is equipped with a cylinder, which will automatically re-suck and seal after each filling to prevent leakage.
5. Adopt oil cylinder and cylinder combination way, making filling more smooth and stable, preventing spillage.
Advantage
1. This machine is specially designed for corrosive liquids such as toilet cleaner, all parts in contact with the toilet are made of plastic.
2. This machine uses a compressor as its power, can work without external electric power, is easy to adjust the filling volume and speed, and is suitable for caustic liquids such as hydrochloric acid.
Specifications:
Nozzles: 6
Speed: 1000-1500 Bottles/Hour
Charging accuracy: ±1%
Material: Full Plastic.
Air pressure: 0.5-0.8 Mpa
Power: 220V,50Hz,500W
Air consumption: 200-300 L/minute
Weight: 350 kg
Dimensions (L x W x H): 2000 x 1000 x 1750 mm
