Automatic Case Packer from products arranging, carton loading. EC-9401 is designed for reliable automatic productions arranging Case Packer, featured with Low Noise, No Pollution, Easy Maintenance , interchangeable key parts, and 100% full automatic equipment. Application is for cigarettes, crackers, biscuits, etc various square box packaging. Features: Servo CAM mechanical value control for accurate products [...]
Features : Auto uniform carton erector with moving hoppers (Preset) Model：IL-801RPS5 Automatic carton erector & bottom sealer Suitable usage product: carton Type：Vertical、Automatic adjustment Specification : IL-801RPS5 Carton size range： (L)700-920mm (W)460-760mm (H)450-750mm Speed：2ctns/min. Machine dimension：(L)6800mm×(W)2825mm×(H)2700mm
Features : Automatic carton erector & packer Model：EC-841 Automatic carton erecting, loading products and carton sealing Suitable uasge products: various round and square shape integrated carton loading and sealing
Automatically complete carton erecting, rectangle forming, bottom flaps folding and tape sealing Opening carton by vacuum sucker With alarm function for the lack of adhesive tape & carton Easily adjusted for application to cartons in different sizes Parameters Model CXJ-4030C Voltage (V/Hz) AC 380/50 220/60 3 phase Power(W) 800 Air supply pressure (Kpa) 0.5-0.6 [...]
Specification Model FXJ-4030C Voltage (V/Hz) AC 380/50 3 phase Power(W) 800 Air supply pressure (Kpa) 0.5-0.6 Capacity (case/min.) ≤12 Case Dimensions (mm) A B C D E F Min. (mm) 250 150 150 400 230 300 Max. (mm) 400 300 300 700 500 600 Table Height (mm) 700+(0-30) Applicable tape type BOPP, PVC, Kraft adhesive [...]
Parameters Model CXJ-4540D Voltage (V/Hz) AC 220/50 1P 380/50 3P Power (W) 380 Air Compressor (MPa) 0.5-0.6 Max. Packing Size (mm) (L*W*H) 450*400*400 Min. Packing Size (mm) (L*W*H) 250*150*150 Capacity (cartons/min) 8-10 Table Height (mm) 630-650 Width of Tape (mm) 60, 48 Suitable Tape Type BOPP, PVC, Water-free adhesive tape Carton Storage (cartons) Approx. 80 [...]

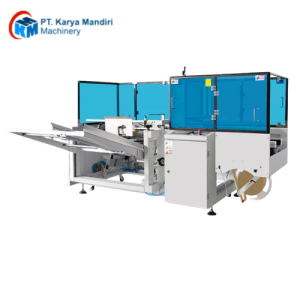

CXJ-6040A Automatic Case Erector is with process in sequence of unformed case taking, rectangle forming, bottom flaps folding, case conveying and bottom sealing. Superior mode of opening carton without vacuum sucker. Advanced pin system for picking up unformed case. With adjustable tension of belt or tape, suitable for conveying and sealing the cartons that made of different [...]
Features : Carton erector (Vertical type) Model：EC-801 Automatic carton erector & bottom sealer Easy to adjust and changeover quick for various carton size PLC controlled Motorized hopper Specifications : Carton size range： (L)：250-570mm (W)：170-410mm (H)：90-550mm *L570mm×H90mm, Width is above 300mm *L570mm×W410mm, Height is above 170mm Speed：8-12ctns/min. (Depends on carton size) Motorized hopper：Storage around 1150mm [...]
