Triple‑function for polishing, dedusting and lifting of tablets, capsules and others. Height‑adjustable for connection with other equipment such as tablet presses, metal detectors, etc.
Parameters

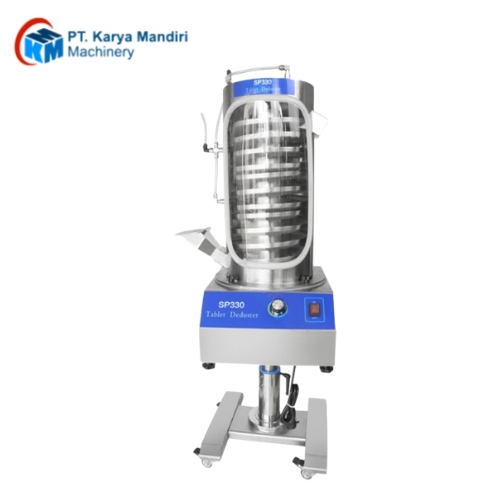

| Product name | Top‑rotation tablet sieve machine |
| Model | SP‑330 |
| Voltage | 220V/110V, Single‑phase |
| Power | 150 W |
| Capacity | 1,000,000 tablets per hour (taking φ6‑mm tablet as example) |
| Dust‑removal Distance | 6.2 m |
| Diameter Range | 3‑25 mm |
| Vacuum Dust Extraction | 2.5 L/min, ‑0.1 MPa |
| Compressed Air Supply | 0.1 L/min, 0.1 MPa |
| Machine Overall Dimensions | 450×500×1230 mm |
| Net Weight | 70 kg |
| Packing Dimensions | 600×500×1310 mm |
| Gross Weight | 95 kg |
