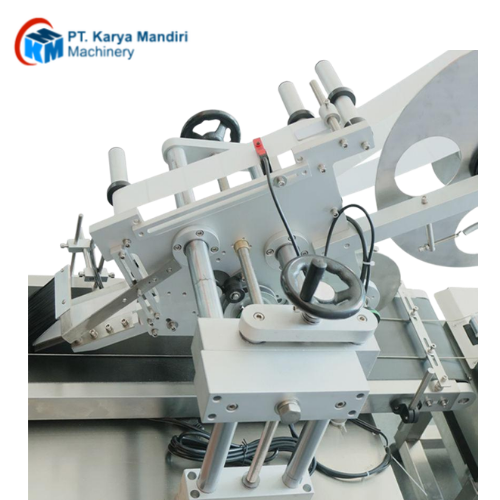

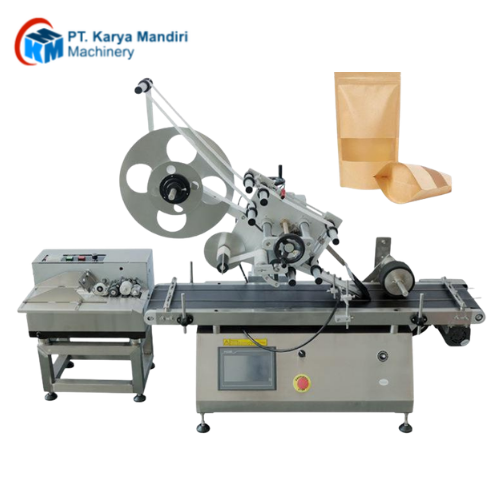

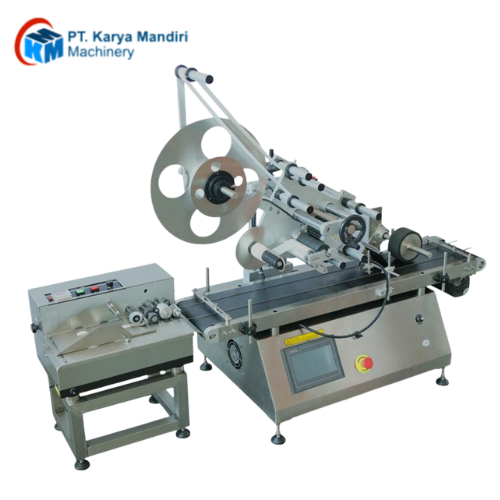

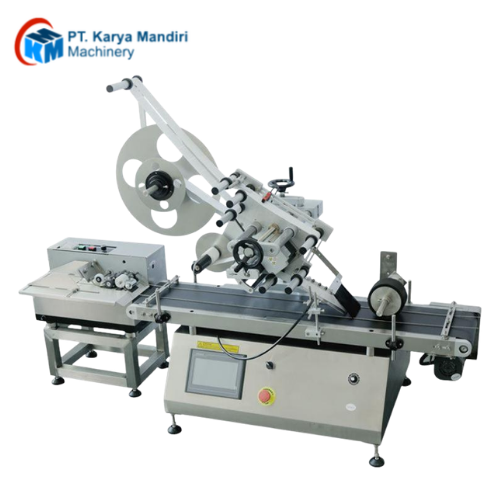

The flat plane labeller machine is an easy to operate box labelling machine with label counter and pre-set batch controls, keyboard and digital display suitable for a wide range of box labelling applications. Main is suitable to the medicine, Daily chemicals, Personal Care Product,food industry ,cosmetic etc labels paper,flat carton or box bags flat labeling with paging function, Top surface labeling. Can be equipped with all kinds of printer to print, online real-time can use single, also can use connect product line.

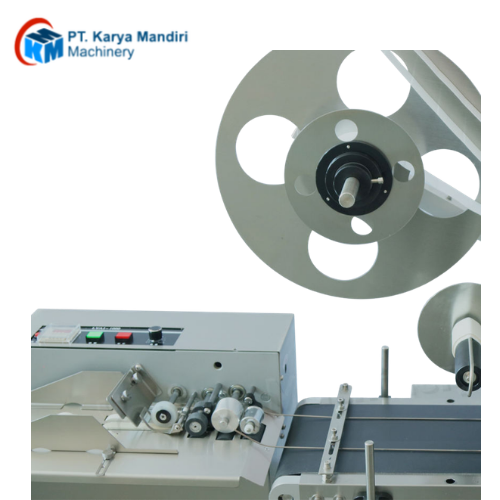

MY-380F/W Solid-Ink Coding Machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion. Adopt photoelectric mechanism technology, featuring automatic temperature control, auto counting & adjustable print position. Adopt solid-ink coding with selectable color, featuring legible printing, instant printing-instant drying and strong adhesion. With dual-use print wheel, suitable for R type and T type arrangement. T type arrangement: 1-11 lines, 1-10 characters/Line; R type arrangement: 1-8 lines, 1-8 characters/Line. Aluminium baseframe, much stronger than the plastic one. Cantilevered structure. Tailor-made clutch, more precise and lower noise. Automatic counting and preset printing quantity. The machine is automatic, with high speed & high efficiency up to 300pcs/minute.
Features:
√Reliable performance
√Simple operation
√Convenient maintenance
√Cost-effective
√Wider work table
Application:
1. MY-380F/W Solid-Ink Coding Machine can print on a PT, PE, KT, OPP, COP heat shrinkable label, aluminum foil, bags, paper and all kinds of plastic composite films and other materials.
2. It widely used in food,beverage,pharmaceutical ,aquatic,native products, cosmetics, electronic components, hardware, chemical and others.
3. To use in the place where there is a restriction on space, such as small factories, monopolization shops, and workshops, etc.
Parameters
Model: MT-160
Power Supply: 220V 50HZ
Container size: Lenth: 40-400mm; Width: 40-200mm; Height:0.2-150mm
Label size: Length: 20-200mm; Width:10-110mm
Labeling speed: 20-40 Pcs /Mln
Labeling precision: ±1mm
Machine size (L*W*H): 1250*900*1200 mm
Machine Weight: 150KG
