The machine is applicable to punch large grain solid, wet, or excellent powder. The machine is simple in structure, convenient for operation, and, to a high degree, applicable to punch tablets of different shapes.

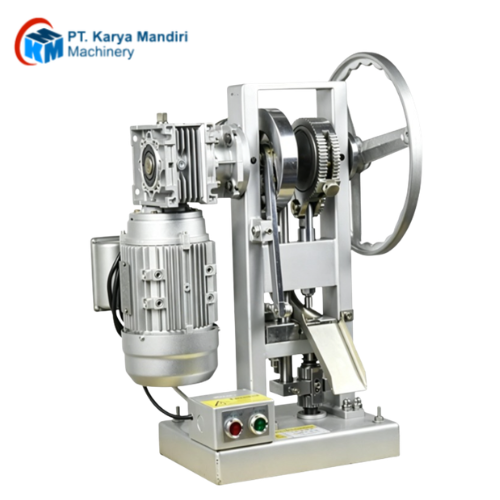

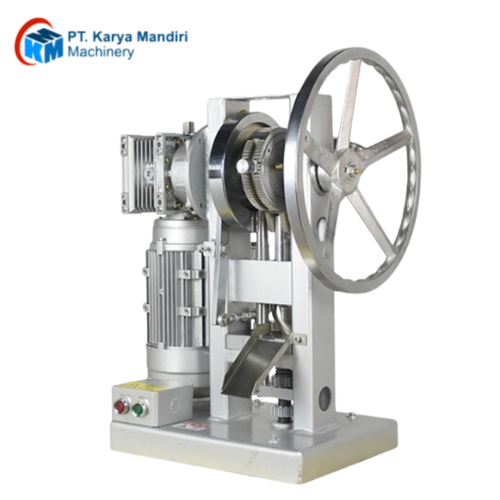

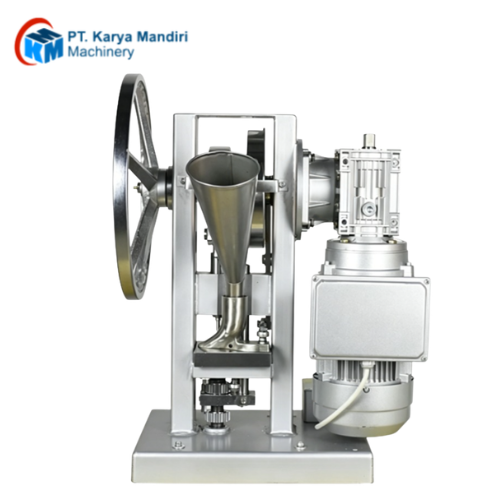

This machine is a mini-type desk-type tableting machine, driven by a motor, and can continuously produce various tablets. The machine can punch fine-grained and coarse powder into circular tablets or irregularly shaped tablets, and it can be used for laboratory production or small batch production of tablets, sugar-coated tablets, calcium tablets, irregular shapes, etc.
Parameters
| Model | THDP-5 | THDP-6 |
| Max.Pressure(kn) | 50 | 60 |
| Max. diameter of tablet(mm) | 5-15 | 20 |
| Max. depth of fill(mm) | 0-18 | 18 |
| Max. thickness of the tablet(mm) | 0-7 | 7 |
| Production capacity(pcs/hour) | 4200 | 4000 |
| Power of the motor(kW) | 0.75 | 1.5 |
| Machine size | 480*460*620 | 500*410*680 |
| Machine weight | 55 | 85 |
