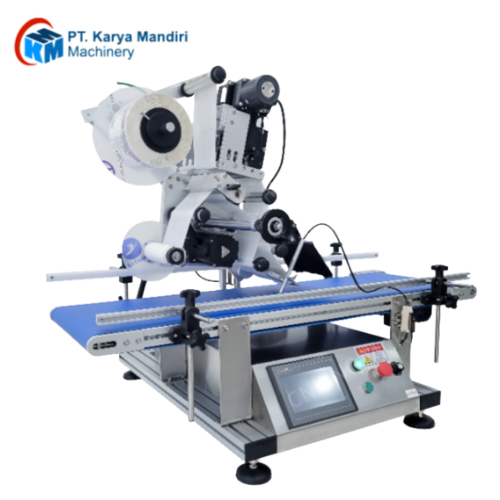

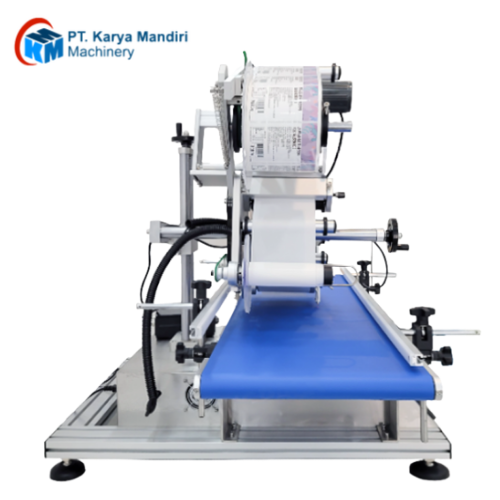

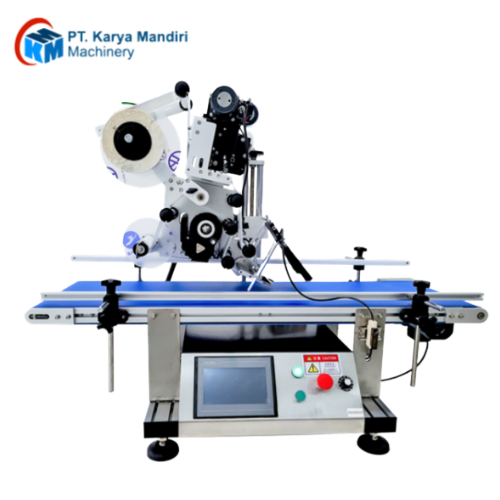

Table Type Round Labeling Machine KP-75

Applies to the round surface of the object round bottle labeling, such as water round bottles, cans and other round bottle labeling, widely used in cosmetics, food, pharmaceuticals, disinfectant and other industries.

APPLICATION

  1. For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
  2. Application: Diameter 30mm ~ 100mm round bottle between. Special will be made as per bottle sample.
  3. Industry: Widely used in medicine, food, toys, cosmetics, and other industries.

WORKING PROCESS:

Procedure: put the product conveyor belt (which can be accessed line) -> Products delivery -> Products minutes away ->  Product Testing -> Labeling -> collect the labeling products.

PARAMETER DATE

Suitable label length (mm): 20mm ~ 350mm
Applicable Label width : 20mm ~ 150mm
Applicable Products height: 25-350mm
Applicable standard roll diameter (mm): 280mm
Applicable standard roll diameter (mm): 76mm
Labeling accuracy (mm): ± 1mm
The standard speed (m / min): 5 ~ 19m/min
Labeling speed (pcs / min): 25 ~ 50pcs/min
Conveyor speed (m / min): 5 ~ 18m/min
Weight (kg): about 110kg
Frequency (HZ): 50HZ    Voltage (V): 220V
Power (kw): 500w
Device dimensions (mm) (L × W × H): 1200mm × 800mm × 900mm
