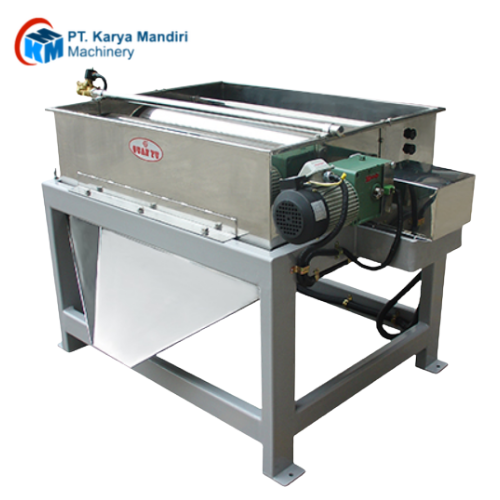

Features
- Small space, light weight, easy re – location, and simple operation.
- Spread the flow evenly, and the capacity can be regulated.
- Continuous washing system to keep material flow tidy, saving energy and high efficiency.
Process for iron removal
- The liquid form of raw material feeds into the inlet of the machine and flow through the regulating plate. The turning main magnetic drum attracts iron particles efficiently, and the decontaminated raw material then flows through the outlet of the machine. Those iron particles attracted on the main magnetic drum will be carried approaching to the auxiliary magnetic drum. The turning auxiliary magnetic drum will remove the particles from main magnetic drum onto itself. The iron particles on the auxiliary magnetic drum will be washed away when reaching the water sprinkler, and discharged through contamination outlet.
Configuration
- Inlet.
- Regulating plate.
- Iron removal zone.
- Main magnetic drum.
- Auxiliary magnetic drum.
- Water sprinkler.
- Outlet.
- Contamination outlet.
Specification
- Magnetic field strength (GS): ≥ 4500
- Capacity (kg / hr): around 2,000 kg / hr (Specific gravity of raw material: 1.6 – 1.8, flow rate of 100 ml: 20 – 50 secs)
- Net weight (kg): 410
Application
- This machine is designed to remove ferrous contamination from powder form of raw material in many industries, such as food, pharmaceutical, chemical, ceramic, electronics and etc. (Operation temperature should be less than 80°C)
