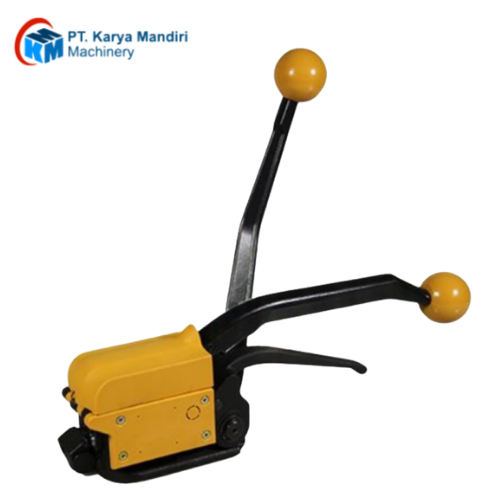

KZS-333 is another representative of the series of combined strapping tools for strapping cargo with steel tape without the use of staples from the Hualian plant. The tape is fastened using a sleeveless method with a self-tightening lock with a triple punch. This type of fastening is called “Dovetail”. Its main advantages are cost-effectiveness (the absence of staples reduces packaging costs), high reliability and strength (which allows using this method of strapping for heavy and large-sized cargo).
The KZS-333 strapping tool is in demand when strapping transport packages and box containers. With its help, such cargo as: building materials (bricks, foam blocks, reinforcement, double-glazed windows), lumber, furniture blanks, etc. are prepared for transportation.
Since the tool is combined, it simultaneously performs the functions of a tensioner and packaging tongs. With its help, the following operations are performed sequentially:
tensioning of steel tape;
sleeveless fastening of tape with a lock with a dovetail notch;
tape cutting.
Parameters
Width of the used tape (mm) 19 (12.7 on request)
Thickness of the used tape (mm) 0.38-0.7
Belt material steel
Fastening method sleeveless
Clutch type “Dovetail”
Maximum tension 70-80
Net weight (kg) 3.9
Dimensions (mm) 387x168x308
