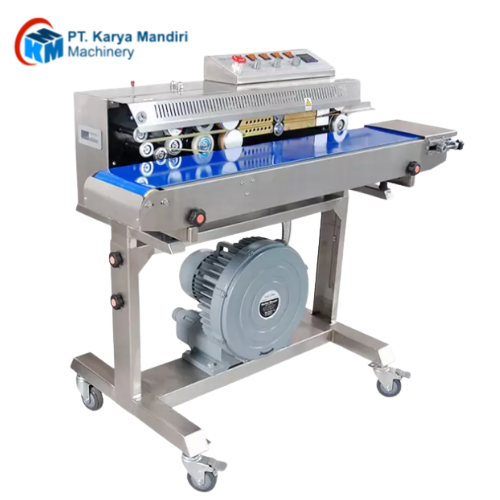

FRMQ-1010III Stand Model Continuous Band Sealer with Nitro Gas Filling can seal any heat-sealable materials. Apart from the function of gas filling, model FRMQ-1010 adopts solid-ink coding device to print the colored label on bag while sealing. The print wheel equipped to the machine can be used for both R arrange and T arrange of types. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.
Features:
- Constant temperature control and temperature is adjustable.
- Stepless speed regulation
- Solid-ink coding is featured by high definition, various selectable colors, instant dry while printing, strong adhesive property.
Application:
FRMQ-1010III Stand Model Continuous Band Sealer with Nitro Gas Filling is applied to pack fragile or bulking objects generally.
Parameters
|
FRMQ-1010III
|
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Moter Power (W)
|
100
|
|
Suction Pump Power(W)
|
90
|
|
Sealing Power (W)
|
400*2
|
|
Printing Heating Power (W)
|
40×2
|
|
Sealing Speed (m/min)
|
0-12 (0-16)
|
|
Sealing Width (mm)
|
10
|
|
Temperature Range (℃)
|
0-300
|
|
Printing Type
|
Solid Ink Roller
|
|
Distance from Sealing Center to Conveyor Table (mm)
|
10-40
|
|
Conveyor Table Size (L×W) (mm)
|
1089*205
|
|
Max. Conveyor Loading for Single Package (kg)
|
≤1
|
|
Overall Conveyor Loading (kg)
|
≤3
|
|
External Dimensions (L×W×H) (mm)
|
1089*550*955
|
|
Net Weight (kg)
|
74
|
