Suitable to compress tablets from diverse granular materials, including sugar pieces, calcium tablets, and uniquely shaped tablets.
Parameters

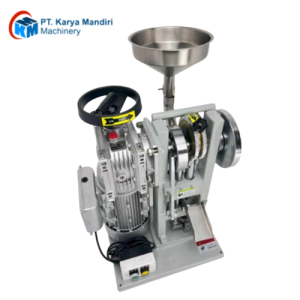

| Product name | TDP-6NT Single Punch Tableting Machine |
| Operating Voltage | 220V, 110V (Customizable) 1.5KW |
| Production Capacity | 4500 pieces/hour |
| Adjustable Tableting Pressure | 60 kN (Adjustable) |
| Tableting Diameter Range | 4-18mm (Comes with one standard mold; molds are in stock, choose one; alternative molds can be purchased separately or replaced; custom shapes are also available) |
| Adjustable Tableting Thickness | 2-6mm (Thickness adjustable according to actual needs) |
| Main Unit Net Weight | 53kg |
| Packaging Weight | 65kg Plywood packaging, standard packaging, bottom screws for unpacking |
| Dimensions | 460*330*680MM |
| Packaging Dimensions | 560*430*710MM |
| Material | Steel + Stainless Steel (Material contact; molds are made of mold steel; stainless steel is not hard enough) |
| Unpacking Instructions | Simply unscrew the bottom screws to lift the lid and open; easy and quick. Do not forcibly disassemble the bottom and sides. |
