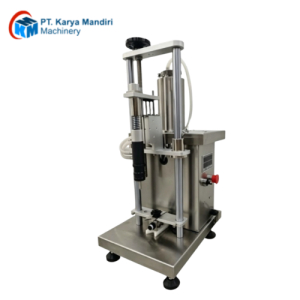

Single nozzle liquid filling machine is pure pneumatic equipment, no electricity, it is one of the most economical filling machine is particularly suitable perfumes, essential oil and other liquid products, filling small doses, is your wiring or stand-alone use ideal choice.
The series machines easy to operate, the operator simply stuck in the bottle under the filling head or pedal to perform filling. It is mainly power as gas source, customers must bring their own air compressor equipment.
Features
1.Filling capacity approach is to control the height of liquid;
2.The shape of the bottle is not strictly required;
3.Simple structure, easy operation and maintenance;
4.Pure pneumatic machinery meet requirements of anti-explosion;
5.Equipped with automatic drainage system.
Parameters
| Equipped with air pressure | 0.5-0 .8 M |
| PaLevel accuracy | ± 1mm |
| Viscosity range | maximum applicable Viscosity 20Cps (static viscosity) |
| Production capacity | 15-40pcsbottles / min |
| Bottle height | ≤ 250mm(can be customized) |
| Bottle diameter | ≤ φ 5mm- φ 35mm (can be customized) |
| Dimensions (not including reservoir bottle) | 40*45*70cm |
| Pumping rate | 5.5 l / sec |
| Gross weight | 25kg |
