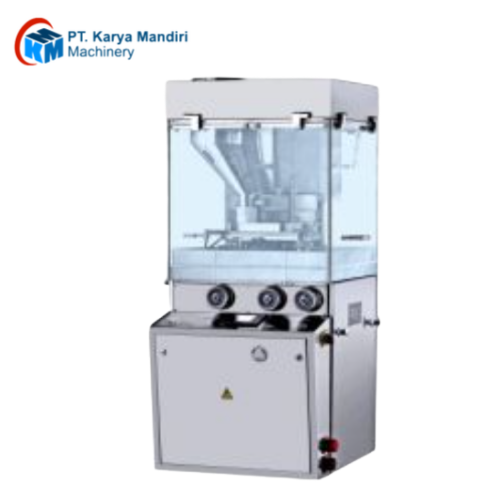

The ZP460 series rotary tablet press is a new type of tablet press developed by our company recently. It integrates the characteristics of ZP35B/ZP45A traditional tablet press and high-speed tablet press. It has a novel appearance, reasonable structure, convenient operation, smooth operation, safe and reliable electrical functions, and meets the latest GMP specifications. It is an ideal model for workshop renovation and replacement.
Applications:
This machine is an automatic rotating continuous tablet pressing machine, suitable for industries such as electronics, food, chemical, daily necessities, pharmaceuticals, etc. It is a professional equipment for continuously pressing various granular raw materials. This machine has a wide range of applications and is suitable for pressing various types of tablets, such as tablets, milk tablets, calcium tablets, camphor balls, and powder metallurgy products.
Features:
- Double sideoutput, with a large number of punches, suitable for mass tablet production.
- Perfect tablet pressing system, twice compression processes with main pressing and pre-pressing, long compression time, improve tablet hardness, suitable for pressing materials with poor compressibility, such as traditional Chinese medicine and calcium tablets.
- The operation interface is rich in display, which can display real-time working pressure, speed, output, main pressure wheel/filling displacement, etc.
- The outer casing is fully enclosed and made of stainless steel. The components in contact with drugs are made of stainless steel material or specially treated on the surface, non-toxic and corrosion-resistant, and comply with GMP standards.
- The tablet chamber is sealed with transparent organic glass and can be fully opened, making it easy to clean and maintain internally.
- Use a forced feeder to improve material fluidity, increase feeding speed and accuracy.
- Equipped with a pressure sensor, which can display the working pressure in real time and set the upper limit of pressure protection. When the pressure is overloaded, it can automatically shut down.
- Adopt a cantilever control screen, easy to operate, rich interface, safe and reliable.
- Advanced functions such as group rejection, formula management, and electronic signature.
- Adopt an automatic lubrication system to fully lubricate the pressure wheel, track, and punch rod, extend their service life and reduce wear.
- Equipped with high-power motors and high-precision reducers to achieve stable power output.
- Equipped with various safety protection devices (emergency stop, overpressure, door and window protection, motor overload, rejection)
- It is oil proof, dust proof, and noise proof.
- Optional functions such as double layer tablets, ring shape tablets and remote access
Parameters
| Model | ZP-33 | ZP-41 | ZP-49 | ZP-53 | |
| Number of Stations | 33 | 41 | 49 | 53 | |
| Tooling Standard | D | B | BB | BBS | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 10 | ||||
| Max Tablet Diameter (mm) | round tablet | 25 | 18 | 13 | 11 |
| irregular tablet | 25 | 19 | 16 | 13 | |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 | |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 | |
| Max Turret Speed (r/min) | 40 | ||||
| Max Production Capacity (pcs/h) | 158400 | 196800 | 235200 | 254400 | |
| Motor Power (kw) | 5.5 | ||||
| Overall Size (mm) | 1120×980×1800 | ||||
| Machine Weight (kg) | 2000 | ||||
