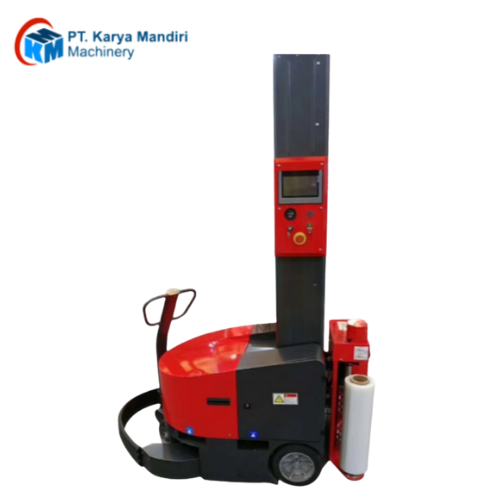

The mobile wrapping machine HL-600B is designed for wrapping various goods with stretch film, including those located on pallets and trays. It can be used for transport packaging of non-standard and large-sized goods due to the absence of restrictions on the working area.
A special feature of this model is the presence of a carriage with preliminary stretching (pre-stretch). Thanks to this, high-tech film with a high percentage of stretching (up to 300%) can be used for wrapping, which significantly saves on the consumption of packaging material.
Advantages
mobile design and compact dimensions. This ensures convenient movement of the wrapper around the warehouse or loading and unloading area, including at those sites where, due to space restrictions, it is impossible to install a stationary forklift or use a forklift to move goods;
autonomous power supply from a powerful battery with increased capacity. This allows you to use the pallet wrapper at sites that are not equipped with electricity, including in open areas;
modern electronic control with a convenient touch panel with a color display. You can save up to 10 wrapping programs in memory. The operator can adjust the number of turns at the top and bottom, tension and pre-stretching of the film, the speed of the wrapper and other parameters;
easy to operate, operate and maintain. The only requirement for operating conditions is a flat surface;
safe operation. The wrapper is equipped with a sound signal for starting and stopping, there is an emergency stop button on the front bumper and under the carriage.
Parameters
Voltage (V) 220
Power (kW) 1
Minimum pallet size (mm) 600*600
Maximum pallet size (mm) Unlimited
Column height (mm) 2400 (2800 optional)
Maximum wrap height (mm) 2200 (2600 optional)
Maximum load weight (kg) Unlimited
Machine speed (m/min) 50-95
Carriage lifting/lowering speed (m/min) 1-4
Number of pallets on one battery charge 250
Lilon battery (2 pcs) 12V, 120 Ah
