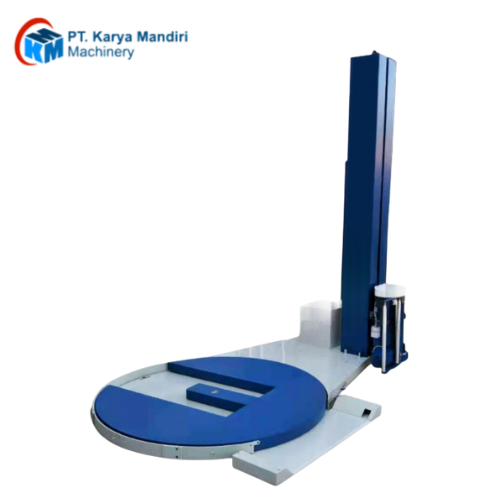

HL-1650F is a new model in the series of pallet wrappers from the Hualian brand. The features of this model are the E-platform (rotary table) and the motorized carriage. The updated design of the film holder provides optimal tension. Together with photo sensors and proximity sensors, it helps to accurately position the film and ensure high quality wrapping of goods and cargo.
There is also a model with a mechanical carriage and an E-shaped platform for a forklift – HL-1650EF.
The device is used for packing food products, drinks, building materials, light industry goods and other goods located on pallets (Euro-pallets) in stretch film. It is successfully used in logistics, warehouses, sorting stations, transport companies, air and rail carriers, etc.
Due to the high degree of dust and moisture protection (IP54), it can be used in open areas. The column mechanism has an isolated design, the closed electrical cabinet is reliably protected from dust and moisture.
Advantages
- a high level of protection and safety. In addition to the dust- and moisture-proof design, the pallet wrapper has an emergency stop button, a one-click start and restart function, a reinforced winding unit design that is well protected from mechanical damage;
- modern electronic control with a convenient, intuitive interface (HMI – human-machine interface). The operator can adjust the parameters;
- a rotary table with adjustable rotation speed and reduced noise level. The platform is driven by a chain transmission with precise positioning.
- a wide range of winding parameter settings, including an adjustable number of winding layers (bottom and top). The photo sensor automatically determines the height of the pallet;
- The diameter of the rotary table in this model is 1650 mm, the maximum load height is 2400 mm, the maximum load on the platform is 800 kg.
Parameters
Voltage (V) 220/50
Power (kW) 1.5
Turntable diameter (mm) 1650
Pallet height (max) (mm) 2400
Pallet dimensions (LxW) (mm) (600-1200) x (600-1200)
Turntable height (mm) 100
Maximum platform load up to 800
Table rotation speed (rpm) 0-12
Used film LLDPE
Film thickness (microns) 17-35
Film width (mm) 500
Film roll core diameter (mm) 76.2
Outer diameter (mm) 240
Weight in packaging (kg) 625
