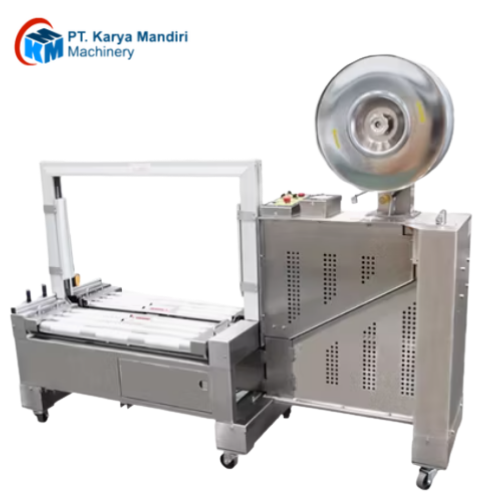

KZDW-8060/D automatic strapping machine can be used in production line of which objects differ in size and irregular in shape,and it can achieve unmanned strapping together with power conveyor. Power belt tabletop and access transmission mechanism are adopted, with easy maintenance. KZDW-8060/D is ideally suited for large or heavy products.
Features:
1. Adopt firm, durable, efficient KZDW-8060/D as main body.
2. Adopt human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running.
3. Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly
4. Oil-free maintenance, firm strapping, high speed and long use life.
5. Instant heating, quick & secure strapping.
Application:
KZDW-8060/D automatic strapping machine is widely used to strap various packages (except annulations) in all kinds of fields. It can be single-unit operation or equipped onto the production line.
Parameters:
| KZW-8060/D | KZDW-8060/D | |
| Voltage (V/Hz) | AC380/50 220/50 | |
| Power (W) | 1400 | |
| Max. Strapping Size (W×H) (mm) |
800×600 (Standard type) | |
| Strapping Speed (sec/pass) | <2..5 | |
| Strapping Force (N) | 25-700(adjustable) | |
| Plastic Strap Used (mm) | PP or PE strap. 9-15mm in width, 0.5-1.1mm in thickness | |
| Height of Table (mm) | 750 | 500 |
| External Dimensions (L×W×H)(mm) |
1400x620x1530 | 1820x620x1600 |
| Net Weight(kg) | 300 | 360 |
