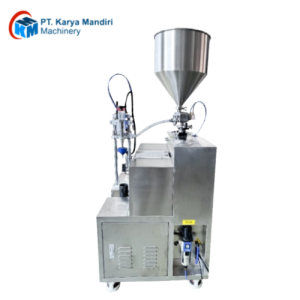

HX-002 Cream Ultrasonic Soft Plastic Tube Filling Sealing Machine

It’s applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
Extensional organization of the machine is made of aluminium alloy and stainless steel.
The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.
The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.
It’s with the function of overload protection, phase difference protection, and power-fail protection
The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.
It’s with the function of automatically cutting.

Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.
Cam indexing system could position precisely for ten working stations.
Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adju st the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
