Features:
- Constant temperature control and temperature is adjustable.
- Stepless speed regulation.

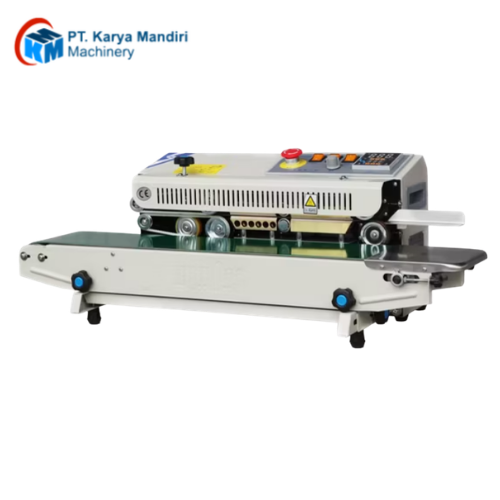

- FRC-770 series Band Sealer With Ink Coder can seal plastic films made from various materials.
- Solid-ink coding device is adopted to print the colored label on bag while sealing. The printing wheel equipped to the machine can be used for both R arrange and T arrange of types.
- FRC-770 Series provides three models, including horizontal model (FRC-770I), vertical model (FRC-770II) and console model (FRC-770III).
Application:
FRC-770 series Vertical Band Sealer is suitable for sealing small packages.
Parameters:
| FRC-770I | FRC-770II | FRC-770III | |
| Voltage (V/Hz) | AC 220/50 110/60 | ||
| Motor Power (W) | 50 100 | ||
| Sealing Power (W) | 300×2 | ||
| Speed (m/min) | 0-12 (0-16)(0-24) | ||
| Sealing Width (mm) | 10 | ||
| Temperature Range (°C) | 0-300(Adjustable) | ||
| Distance from Sealing Center to Conveyor Table (mm) |
10-40 | 150-270 | 10-40 |
| Max. Conveyor Loading for Single Package (kg) |
≤1 | ||
| Overall Conveyor Loading (kg) | ≤3 | ||
| External Dimensions (L × W × H) (mm) |
844×390×310 | 844×390×470 | 844×555×800 |
| Net Weight (kg) | 23 | 28 | 29 |
