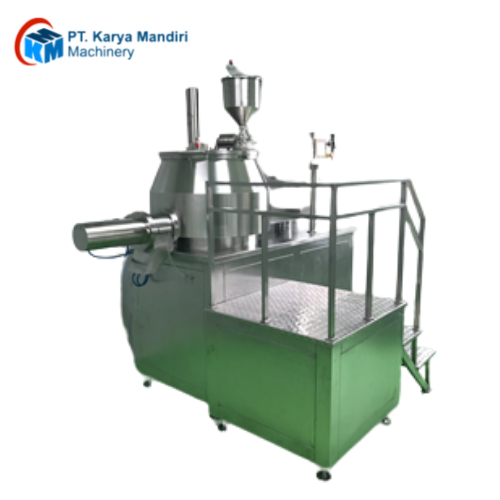

High Speed Wet Mixing Granulator SHK-600

Features

1. Pneumatic bollercover automatic lift, easy close and operation.
2. Conic chamber, materials rolling evenly.
3. Open window and easy operation.
4. Touching screen with dynamic work image and vivid in operation.
5. 45-degree discharging outlet, the granules are completely discharged.
6. V-shaped granulating blade works in inclusion motion, and will keep the materials from entering the gap between V-shaped granulating blades and blades to become a corner, so it can mix evenly.
7. Interlayer jacket cooling and automatic temperature control can improve the quality of granules.
8. 36-degree Zigzag mixing paddles work in three-dimensional motion. The distance between the mixing paddles and the surface of boiler button is0.5 – 1.5mm, so it can mix evenly. There are few residues left on the boiler wall, so it can reduce friction and save 25% energy.
9. It is of labyrinth sealing construction. The rotary axel cavity can automatically spray and clean, featuring reliability in sealing and ease in cleaning.
10. Double frequency control(vector type), the mixing paddles and granulating blades start at a lower speed featuring in big moment and the rotating speed is adjustable and stepless.
11. Equipped with an automatic programmable system, the PLC with analogue quantity modular control can measure and monitor the current in granulating.

Application:

This machine is widely used in pharmaceutical, food, chemical and light industries. etc, to blend powdery materials and granulate. The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.

Specifications

Model SHK10 SHK50 SHK100 SHK200 SHK300 SHK400 SHK600 Volume(L) 10 50 100 200 300 400 600 working volume(L) 2-6 12-36 25-70 50-150 60-220 100-280 150-420 loading capacity(kg) 1-3 6-18 12-35 25-75 30-110 50-140 75-210 Max inside diameter(mm) 300 498 628 788 988 988 1150 Rotational speed of stirring paddle(rpm) 50-500 50-500 30-360 30-260 20-200 20-200 20-150 stirring motor(kw) 2.2 5.5 7.5 15 22 22 30 Rotational speed of cutter(mm) 50-3000 cutting motor(kw) 0.75 1.5 3 4 7.5 7.5 11 Discharge in front Length(mm) \ \ \ 2500 2700 2700 \ width(mm) \ \ \ 1400 1760 1760 \ Discharge in left Length(mm) 1500 2100 2400 2250 2500 2500 2900 width(mm) 570 780 900 1700 1960 1960 2330 Height of Discharge outlet (mm) 700 725 750 930 930 930 1150 height(mm) 1350 1500 1700 2100 2220 2320 2600
