Application:

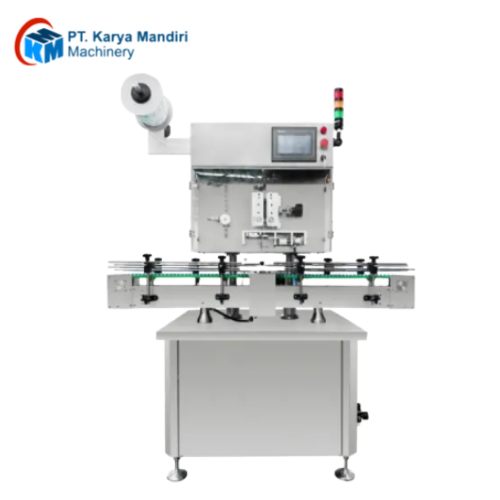

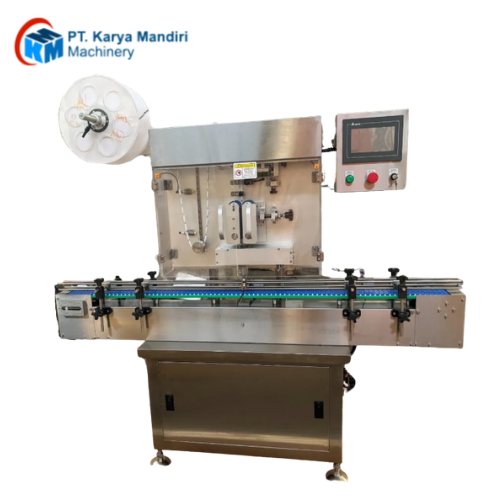

GF Automatic Desiccant Pouch Inserter is specially designed for inserting desiccant pouch into a variety of bottles and containers. It automatically cuts packets from a roll and insert them into containers at speeds of up to 120 bottles per minute. This machine can run independently or be integrated into an automated packaging line.
Working Principle:

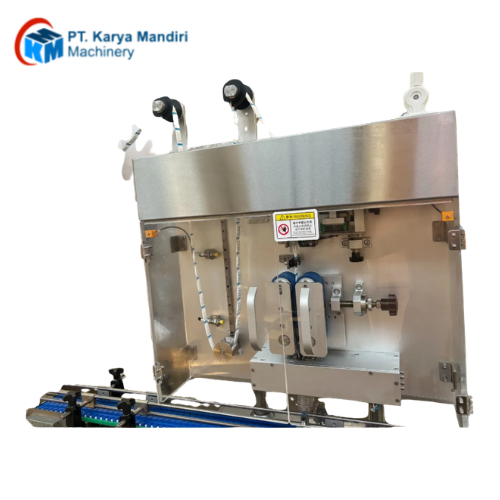

The bottles on the conveyor belt are stopped by the bottle blocking device at the position where the desiccant drops, waiting to be filled. The stepper motor drives the pouch feeding structure, and a color mark sensor automatically controls the pouch feeding distance. After the desiccant pouch is pulled out from the reel, the cutting device cuts the desiccant pouch and drops it into the bottle.
Features:
1.The desiccant inserter has advanced HMI and PLC control system that allows the operator to monitor all processes and make any changes on touch screen.
2.Color mark sensor can control the feeding distance automatically by sensing the color mark on the desiccant pouch, which ensures the accurate control of pouch length.
3.The desiccant pouches thickness adaptation design and highly durable cutter make sure accurate cutting and avoid breakage of the desiccants.
4.The machine body is made of 304 stainless steel material, which is full GMP-compliant design.
Parameters
| Application | Round, square, oval and other special-shaped bottle (bottle diameter ≤100mm; bottle height ≤160mm) |
| Desiccant Type | Roll type desiccant pouch Specification: 0.5/1g |
| Capacity | 85-90 bottles/min |
| Voltage | AC220V 50Hz |
| Power | 0.5KW |
| Compressed Air | 0.6Mpa |
| Net Weight | 301kg |
| Gross Weight | 431kg |
| Overall Dimension (L*W*H) | 1700*900*2100mm |
