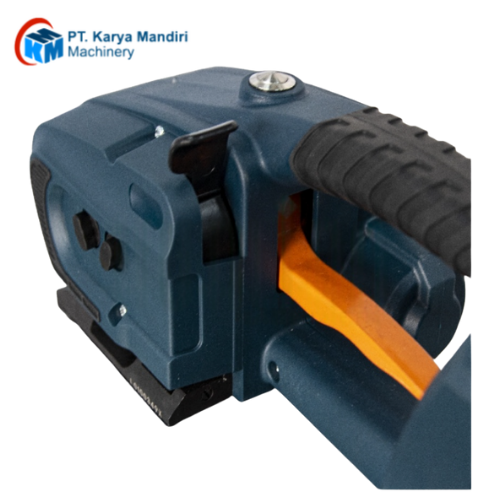

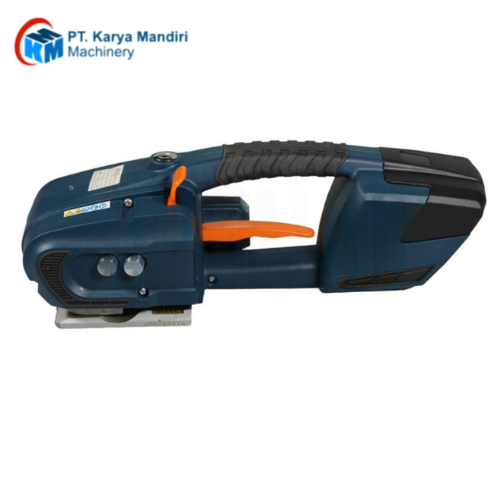

The battery-powered strapping machine KZ-13/16 represents a series of manual strapping equipment from the well-known Chinese plant Hualian. The KZ series strapping machines are designed for strapping large-sized goods and cargo with polypropylene (PP) or polyester (PET) tape: boxes, cartons, bags, pallets, etc. The width of the tape is 12-15 mm.
A special feature of this type of device is the ability to strap without using metal staples – the device welds the ends of the tape by friction, and then cuts the tape.
Manual battery-powered strapping machines of the KZ series have a wide range of advantages, the main ones being:
a compact portable design that allows you to conveniently pack the cargo in its various positions in space, vertical and horizontal strapping is possible. This tool is indispensable for strapping cargo of complex configuration, there are no restrictions on the dimensions of the packed cargo;
autonomous operation from the battery, without the need to connect to the power grid, which significantly expands the scope of application of these devices. The KZ-13/16 model is equipped with two 12 V, 4.0 Amp / hour batteries with a working life of about 220 strapping cycles;
lithium-ion battery;
additional battery included;
mechanical adjustment of tape tension, the tension force adjustment range is 400-2800 N;
high tension speed – from 100 to 250 mm /;
high-quality welding of strapping tape with an efficiency of 80-90%;
durable housing made of high-quality plastic;
ease and convenience of operation and maintenance.
Parameters
Tension force (N) 400 – 2800
Tension Mechanical adjustable
Connection type Friction welding
Welding efficiency 80 – 90 %
Tension speed (mm/s) 100-250
Tape type PP, PET
Tape width (mm) 12 – 16
Tape thickness (mm) 0.5-1.2
Weight (kg) 3
Dimensions (mm) 340x130x118
Battery 2 pcs. 12 V, capacity 4.0 Amp-hours (one with equipment, one additional)
Charger 1 pc. 220 V, 50-60 Hz
Battery charging time 90 min
