Application

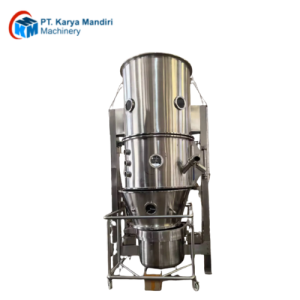

This machine is suitable for granulating for powder in container by spray binder.
Working principle
Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters(HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly. The binder is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air. The evaporating moisture is drawn out by the fan.
Parameters
|
Model |
3 |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|
|
Container |
Volume（L） |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
|
Dianeter(MM) |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
|
Capability |
Min(kg) |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
|
Max（kg） |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
|
|
Fan |
Capacity |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
|
Pressure |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
|
|
Power（kw） |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
|
Sterm expenditure (kg/h) |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
|
|
Comoressed air expenditure |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
1.5 |
|
|
Weight of the main body(kg) |
500 |
700 |
900 |
1000 |
1100 |
1500 |
1500 |
1800 |
2000 |
|
|
Steam perssure(mpa) |
0.3-0.6 |
|||||||||
|
Temperature (°C) |
Adjustable at the range from room temperature to 120°C |
|||||||||
|
Working time （min） |
Decided in accordance with the properties of raw materials |
|||||||||
|
collect rate |
≥99 |
|||||||||
|
noice |
When insallation，main machine is separated from fan |
|||||||||
|
Overall size |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
