Features :

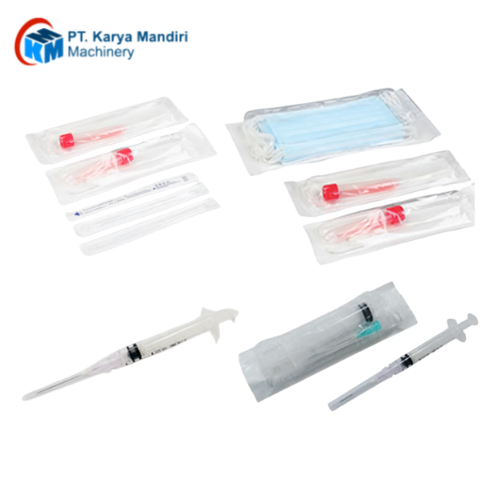

Flat-plate Soft(Hard) Plastic Blister Packing Machine is Widely used in paper-PE blister packing for medical Appliances(Such as syringe needle, injector, pledget)

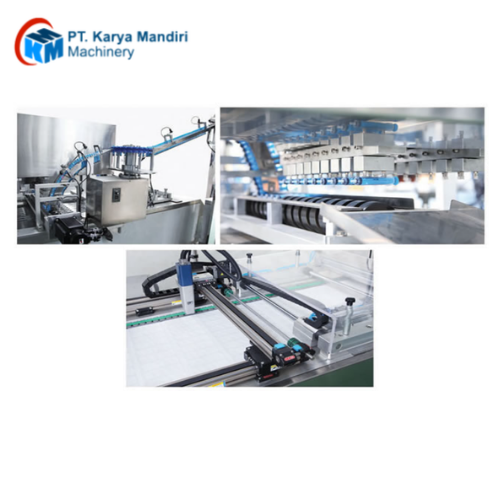

It can continuously finish the full processing of heating in machine for PE film, Forming the blister, filling appliances, sealing, batch number printing. vertical and cross cutting and output the final product.
This machine adapts PLC controller, human-machine interface. servo motor system,photocell register system, and optional with On line Printing system.
Parameters:
| Scope of application | It can be used to package various sensitive anti-pollution items, medical equipment, Chinese and Western medicine, electronic components, chemical products, food, etc. |
| production capacity | 6-12 times/serving (times/minute) (1) 40 needles/time |
| Packaging Materials | Paper-plastic, aluminum-plastic, plastic-plastic composite film (or hard sheet below 0-2mm) that can be heat-sealed, the upper film width is 400 (500) mm, and the lower film width is 420 (520) mm. |
| Maximum molding cavity size | Type 420: 390×390×80mm Type 520: 475×375×50mm (L×W×D) (standard model) |
| Dimensions | DPB-420: 6478*1150*1621.5(L×W×H) (length can be customized) DPB-520: 6478*1270*1621.5(L×W×H) (length can be customized) |
| main switch | 380V/220V 50Hz 16kw |
| compressed air | 0.3m3/min (self-provided) Pressure: 0.6-0.8Mpa |
| mold cooling | Tap water or circulating water |
| weight | DPB-420:1700KG DPB-520: 2000KG |
