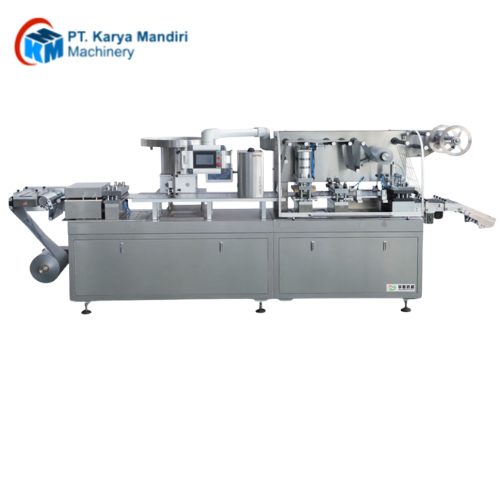

Flat-plate Automatic Blister Packing Machine is the new generation of blister packaging equipment, improved on the basis of traditional machine suitable for capasule, tablets, milk slice, candy, the productssuch as aluminium, aluminium, zhisu compositeseal packing.
Features：
Mould exchange: as a traditial 250 type of improved, mould and old type completely general, is old customer renewal of very good choice.
Die an installation and adjusfrnent: continue lathes type guide rail, use screw adjusting mode of poles, make cabinet protection design clever, can prenent drugs fall into the machine, it is mo re convenient to clean up.
Servo traction, set the more convenient, more easily to the cursor, PVC motor feeding, transmission more robust.
Can be divided structure, convenient transport elevator, gassing axis with PVC, aluminum foil, high-end better use．
Parameter：
| Punch Frequency | 10-70 times/min |
| Capacity | 9600-12000(standard version80*57) |
| Max forming area depth | 120x250x26mm |
| Stroke | 20-120 特殊最大160mm |
| Standard blister | 80×57mm (can be designed as user’s requirements) |
| Main Motor Power | 2.2Kw |
| Total Power | 380V/220V 50Hz 10Kw |
| Packing materials | PVC硬片: 0.15-0.5×260mm PTP片: 0.02-0.035×260mm Cold forming the aluminum film 0.12-0.15×260mm Dialysis paper 50-100g×260mm Average hole of roll 70-76mm Packing material maximum width 270mm |
| Air consumption | ≥0.3m3/h (自备) 压力：0.6-0.8Mpa |
| Mould cooling | Tap water or recycle water 60L/H 60L/H |
| Overall Dimension | 4300×720×1600mm(L×W×H) |
| Weight | 2000kg |
