Applications
Chopsticks, toothpicks, sausage and meat products, pasta, French fries, etc. (diameter less than 30 mm, length 50 – 190 mm)

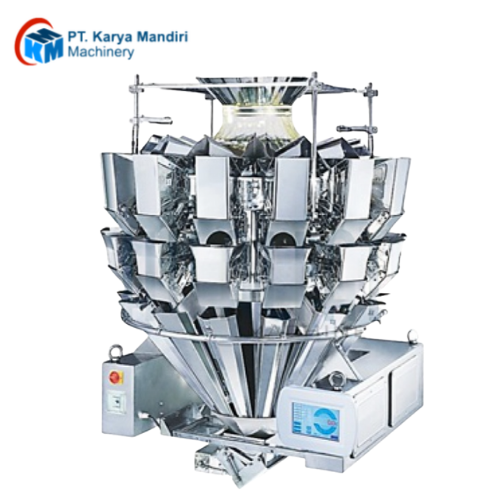

The reversible motor makes the product drop from the upper cone to the linear vibratory feeders more efficiently
Special V-shaped linear vibratory feeders collect the product to the center and drop it vertically into the feed hopper
There is a round tube in the center of the hopper, which allows the product to fall vertically from the feed hopper into the dosing hopper
Parameters
Dosing range 10 – 1000 gr.
Error +-0.5 – 2 gr.
Max. speed 110 pcs/min
Power source 220 V, 50/60 Hz, 2 kW
Bucket capacity 0.5-1 L (cylindrical bucket)
Display 7-inch color touch
Dimensions (mm) 1602*1136*1561
Additional options
Foot drive
Additional modifications
Bucket surface finish
Variable diameter and angle of the upper cone
Stainless steel 316
Linear vibratory feeder angle
Cross partitions for loading hopper
Cross partitions for unloading hopper
Angle of loading hopper
Variable diameter and angle of loading hopper
Teflon coating
