The weighing type filling machine has the characteristics of flexible filling method, fast filling speed, accurate measurement, good stability, and is not affected by the viscosity and temperature of oil products, etc., which is suitable for the filling of small and medium-sized production enterprises. Can fill edible oil, lubricating oil, leaf fertilizer, paint, pure water, glass water, antifreeze and other materials.
Features
- Touch screen, PLC, C3 weight sensor, frequency converter, to ensure the quality and accuracy of filling.
- Computer weighing, diving filling, inverter three-speed adjustment.
- The filling amount is directly set, easy to operate, with a key peeling function.
- Drop compensation function.
Parameters

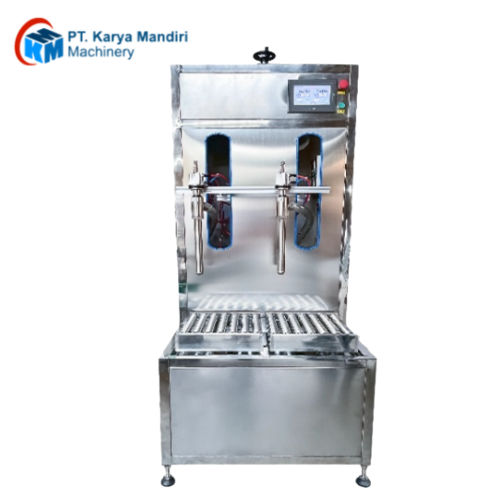

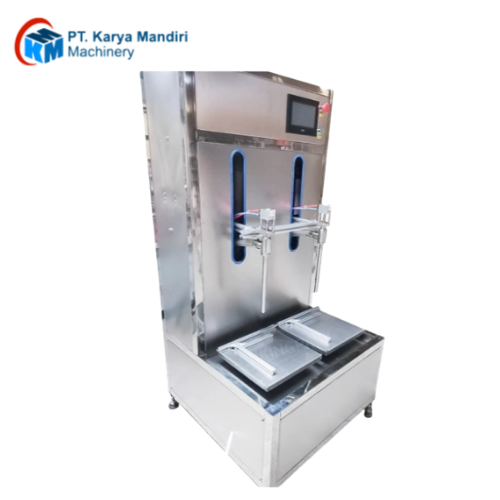

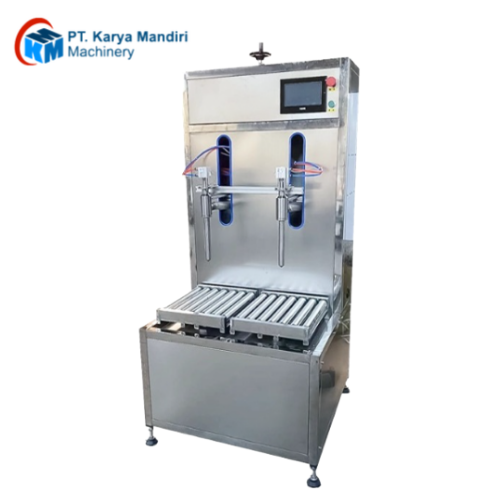

| Product name | Double head weighing filling machine with diving nozzles |
| Model | SWG series |
| Numbers of Filling nozzles | 2 |
| Filling volume | 1-5kg，10-30kg，1-30kg |
| Filling type | Weighing filling machine |
| Filling speed | 5kg, 400 barrels/hour; 20kg, 200 barrels/hour |
| Filling accuracy | 0.5‰ |
| Machine size | 800x800x1680mm |
| Air pressure | 0.5–0.6Mpa |
| Power | Default 380VAC, 220VAC (customizable) |
| Weight | 200KG |
