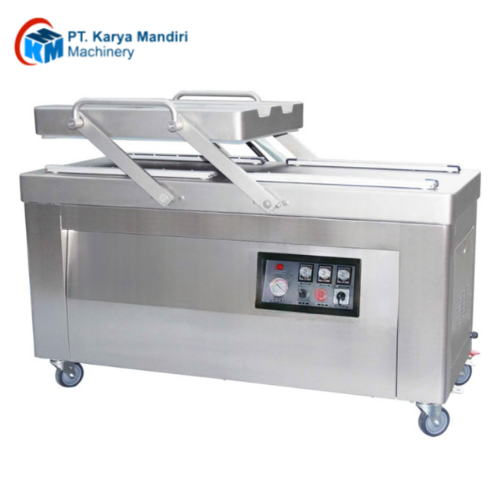

The floor-standing two-chamber vacuum packer HVC-510S/2C is developed on the basis of the HVC-510/2SB device. The chamber here is also flat, the main feature is the lid design itself and its small height. This vacuum packer is suitable for packing oversized flat products, such as snacks, slices, etc. The main idea is a sufficient chamber area – for laying the maximum number of packages, and a minimum lid height – for the most rational vacuuming time, we do not use extra space in the chamber and, accordingly, do not waste extra time on pumping out air. The working dimensions of the chamber are 510 * 440 * 45 mm, the pumping capacity is 40 m3 / h.
High performance of the equipment allows it to be used for vacuum packaging of products on an industrial scale.
Parameters
Voltage (V/Hz) AC 220/50 380/50
Motor power (W) 1800
Sealing power (W) 600
Limiting vacuum pressure (kPa) 1.0
Number of sealing bars in the chamber 2
Sealing length (mm) 510
Seam width (mm) 10
External dimensions of the chamber (L*W*H) (mm) 610*550*45
Internal dimensions of the chamber (L*W*H) (mm) 510*440*45
Vacuum pump capacity (m³/h) 40
Chamber material Stainless steel
External dimensions (L*W*H) (mm) 1270*735*910
Net weight (kg) 220
