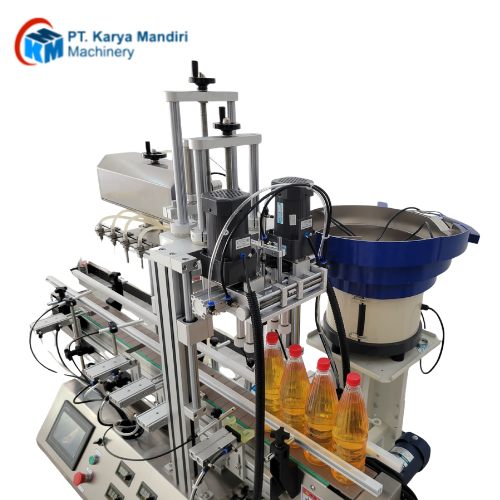

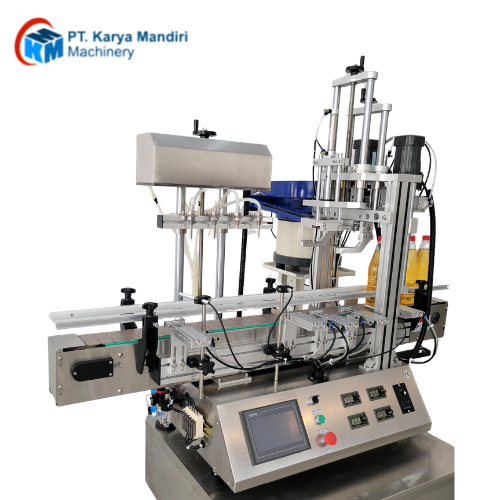

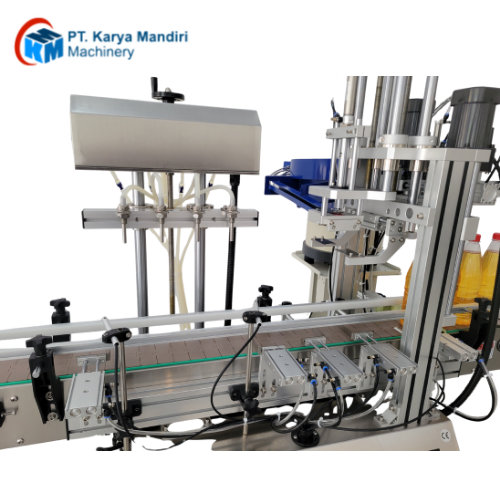

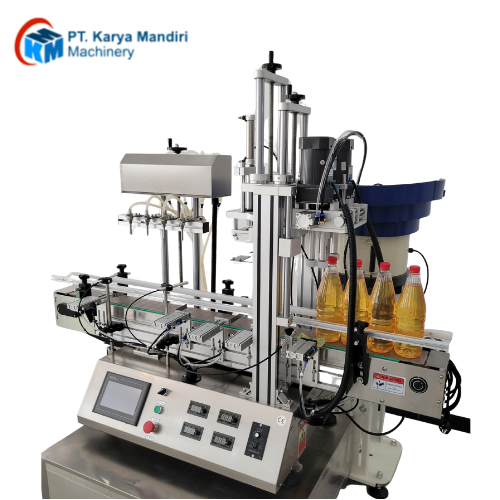

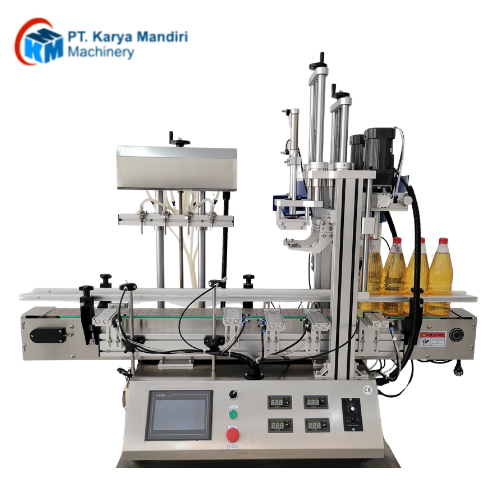

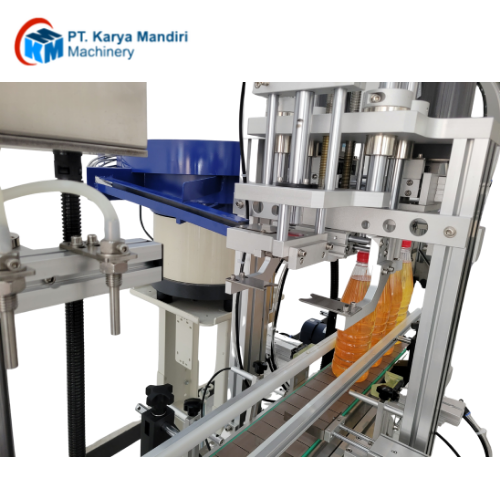

This machine integrates the functions of liquid filling, cap feeding and cap sealing. It is applied for liquid filling similar like water, perfume, wine, milk, flavor drinks, vinegar, etc.
It is able to integrate to desktop labeling machine in bottling line, fully complete and intelligence control advantage.
Features
- Only for liquid filling,not for paste filling;
- Adopts magnetic pump working principle, simple operation, high filling precision;
- Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:Pressure: 0.4-0.6MPa, Power: 1100W, Gas Capacity: >50L
- No-drip Option Included and Install;
- Extremely Easy to Clean and Maintain;
- Extremely Easy to Operate;
- Quick Connect/ Disconnect magnetic pump Fittings;
Parameters
| Machine name | Desktop 3 in 1 Liquid Filling,Cap Feeding And Cap Sealing Machine |
| Voltage | 220V /110V |
| Power | 1080W |
| Product | Liquid products |
| Filling speed | 10-60 times/min |
| Conveyor width | 101 mm |
| Machine size | 1300*800*1220mm |
| Machine weight | 120 kg |
