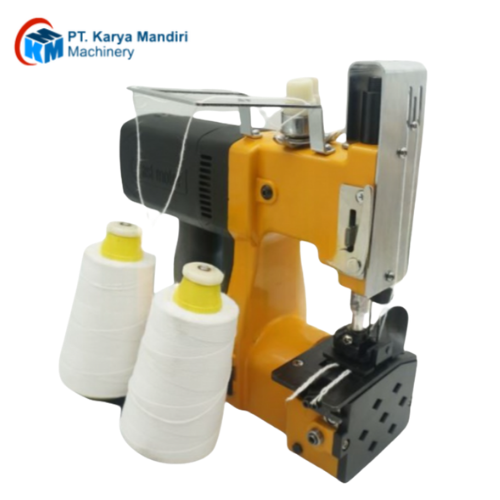

GK9-660 is a manual bag sewing machine for industrial use, representing a series of portable bag sewing machines GK. This series is designed specifically for sewing filled bags made of dense materials, such as: polypropylene, polyethylene, jute, kraft paper, fabric, burlap, etc. The machines of the series are successfully used in food production, chemical, construction and other industries.
A special feature of the GK9-660 model is the presence of two needles. The machine performs 2 lines simultaneously, thereby guaranteeing strength and saving time for sewing the bag. The distance between the lines is 10 mm. The stitch length is 7-10 mm.
The machine body is made of lightweight and durable aluminum, the main structural parts are made of steel, the motor is made of copper. This provides the model with light weight and at the same time – high strength characteristics.
Advantages
- long service life;
- ease of adjustment and maintenance;
- high operating speed.
- The motor rotation speed is 12,000 rpm, which ensures high operating speed and reliable stitching of the densest bags of great thickness.
- To ensure long, uninterrupted operation of the equipment throughout its entire service life, follow the manufacturer’s recommendations:
- regularly lubricate all running units in accordance with the regulations;
- in case of long downtime, lubricate all units in accordance with the lubrication chart before starting operation;
- control the optimal thread tension;
- at the end of the work shift, clean the machine from thread breaks, fabric lint, product residues, industrial dust, etc., paying special attention to the toothed rack, paws and ventilation holes of the engine
Parameters
Power (W) 190
Voltage (V) 220
Rotation speed (rpm) 12000
Thread required 2 rolls
Stitch distance (mm) 7-10
Distance between needles (mm) 10
Needle 25/200
Machine body material aluminum
Motor material copper
Gross weight (kg) 4
Dimensions in packaging (mm) 250x250x80
