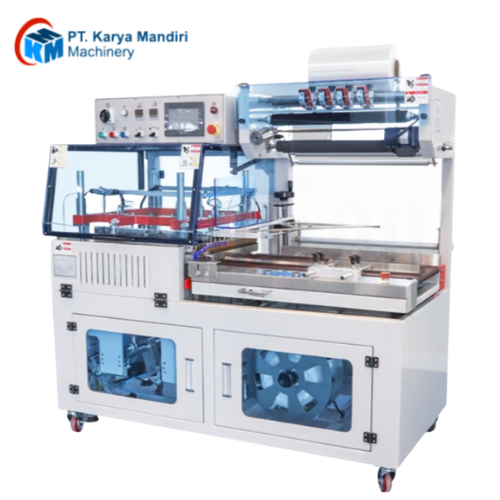

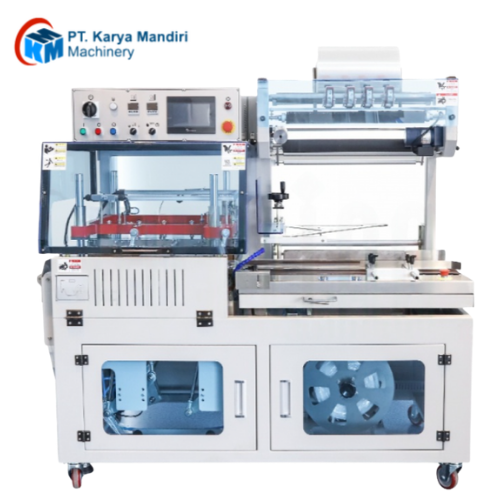

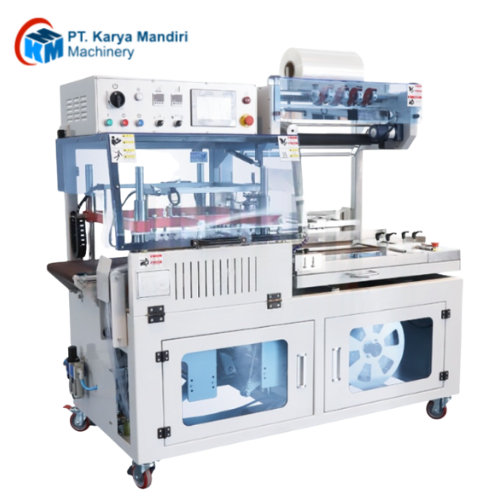

The BSF-5640LV thermal knife represents a series of automatic high-speed knives. The sealing and cutting process is performed fully automatically. The model has a wide range of applications and can be used for packaging a wide variety of products – food, stationery, souvenirs, books, clothing, cosmetics and other product groups. Individual and group packaging is possible. A distinctive feature of this particular device is the ability to work on PE material. The maximum thickness of polyethylene film is 60 microns. It can also be used for POF film. The knives for working on these materials are different and require replacement of the entire sealing unit by highly qualified personnel when switching from one material to another. If frequent switching from one film to another is expected, it is recommended to purchase separate devices for different technological tasks. The heat-shrink knife performs the functions of forming a package from a half-sleeve, sealing with simultaneous cutting along the seam.
Features
Vertical sealing unit;
Pneumatic drive;
Possibility of packaging fairly large products;
Product height configuration – up to 90, 140 and 190 mm, longitudinal sealing line height – 20, 40 and 60 mm. The height is selected when ordering. Basic height – 140 mm;
Productivity up to 25-30 packages per minute (depending on product dimensions);
The model has a more complex design compared to other similar thermal knives in the line. The catalog on the website presents a wide range of packaging and heat-shrinkable equipment, including BS series heat-shrinkable tunnels.
You can order the BSF-5640LV heat-shrinkable knife with delivery to any region of the Russian Federation and the Customs Union country on our website.
Specifications
Voltage (V) 220
Power (kW) 1.8
Maximum size of the packaged object (mm)
(W+H) <450, (W)<400, (D)<350
Height of the packaged object – optional: up to 90 mm; up to 140 mm (base); up to 190 mm. Specified when ordering
Type of packaging material PE/POF (knife replacement required)
Estimated productivity (packs/min) up to 20-30
Knife type Vertical
Drive type Pneumatic (Compressor not included)
External dimensions (mm) 1770*910*1600
Weight (kg) 400
