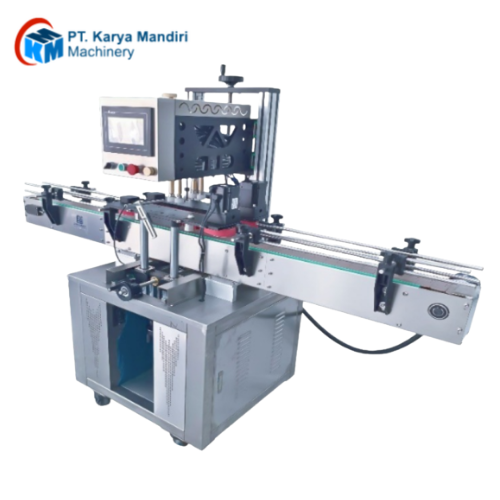

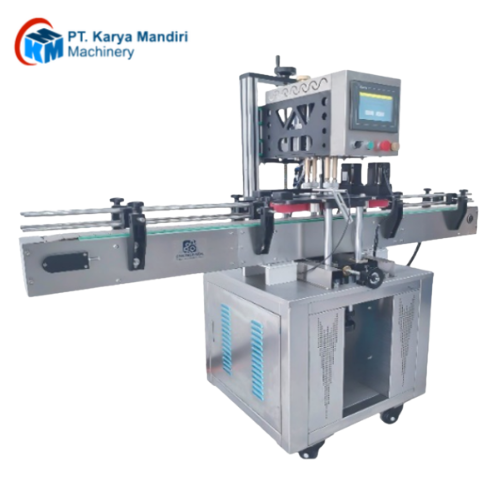

The machine consists of four rubber wheels, driven by a servo motor, which rotates to screw the caps onto the bottles. The rubber wheels grip the cap and turn it until it is securely tightened onto the bottle. The servo motor allows for precise control over the capping process, ensuring each bottle is capped correctly.
Specification
| Product name | Automatic servo motor pump bottle capping machine |
| Machine model | PC-200K |
| Voltage | 110/220V 50-60HZ |
| Machine power | About 2.8KW |
| Capping | Servo motor driven |
| Bottle size Height | 50-300mm |
| Diameter | 30-120mm |
| Cap diameter | 20-60mm |
| Working speed | 30-100 bottles/min |
| Machine size | 2000*750*1650mm |
| Machine weight | 300kg |
| Package size | 2070*830*1730mm |
| Package weight | 321kg |
