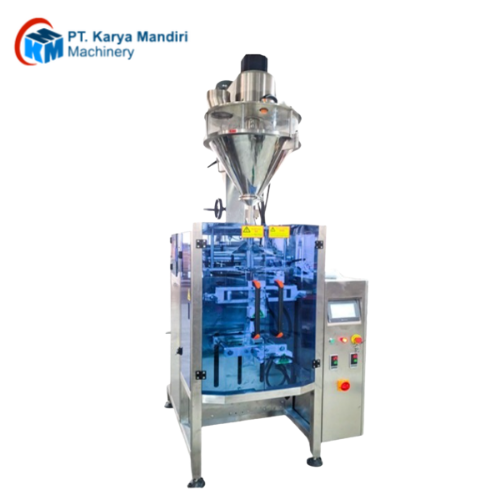

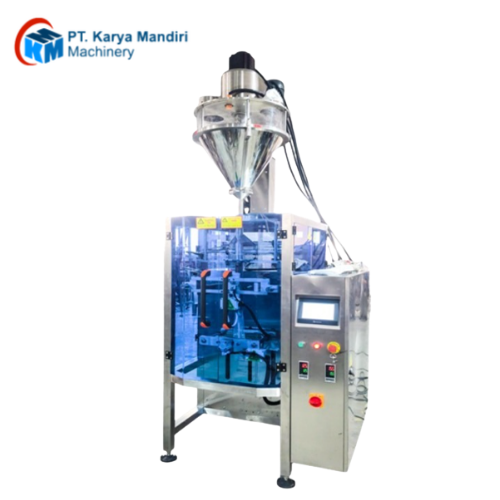

This powder filling packing machine is suitable for different kinds of powder products. Such as flour, coffee powder, milk powder,traditional Chinese medicine herbs powder, tea powder, spices, medical powder, chemical powder, corn scratch, baking soda powder etc.
Features
- Chinese and English touch screen display, intuitive and simple operation.
- PLC computer control system, the operation is more stable, can adjust any parameters without stopping.
- Can store ten sets of parameters, the replacement variety is more accurate.
- Using servo motor pull, positioning is more accurate.
- Independent temperature control system, the accuracy can reach ± 1 ° C degrees.
- Horizontal and vertical sealing temperature independent control, can be well applied to a variety of composite film, PE film and other packaging materials.
- The packaging style is diverse, back seal, gusset, even bags, punching and so on.
- Production bag making, sealing, packaging, printing date is completed in one go.
- The working environment is clean and the noise is small.
Advantage
- Stainless steel 304 foods grade
Applications
Suitable for food, beverage, daily necessities, chemical industry and other industries
Parameter Data
Model | KPL-420BFP | KPL-520BFP | KPL-620BFP | KPL-720BFP |
Film width | Max.420mm | Max.520mm | Max.620mm | Max.720mm |
Bag width | 65-200mm | 80-250mm | 100-300mm | 130-350mm |
Bag length | 60-300mm | 80-400mm | 80-450mm | 80-500mm |
Meaursing range | 100~1000gram can be change the screw | 300~2000gram can be change the screw | 500~3000gram can be change the screw | 1000~5000gram can be change the screw |
Capacity | 10-45bag/min | 10-45bag/min | 10-35bag/min | 10-30bag/min |
Power supply | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz |
Air supply | 0.6MPA | 0.6MPA | 0.6MPA | 0.6MPA |
