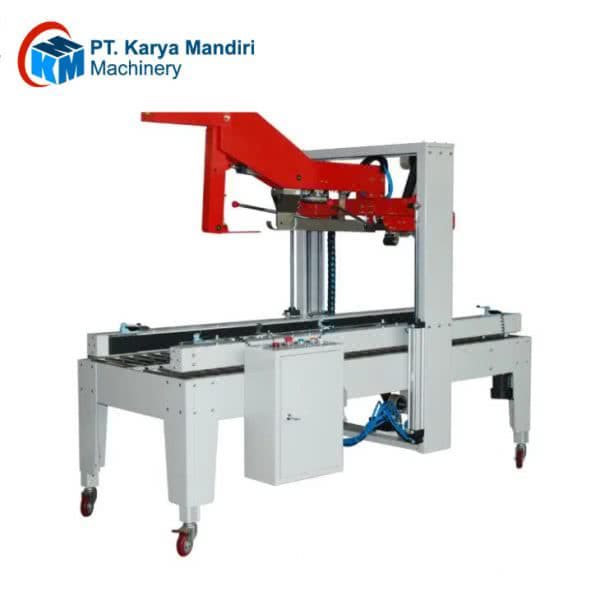

Automatic folding cover sealing machine is mainly with automatic production lines. Unmanned automatic sealing.
Carton size change, automatic machine positioned at the top of the automatic equivalent, without manual operation can be realized in the same period of time with different specifications carton sealing continuous word.
Four bendable panel when the job simply folded carton bottom surface is formed, after input from both sides into the items within belt-driven conveyor track, carton sealing machine side folding cover
Device is activated, folding cover sealing in one operation.
Parameters:
| FXJ-5050ZQ | |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 |
| Max. Carton Size (L×W×H)(mm) | 600×500×500 |
| Min. Carton Size (L×W×H)(mm) | 250×150×180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 660-840 |
| Width of Adhesive Tape (mm) | 48，60，76（optional） |
| External Dimensions (L×W× H)(mm) | 2270×1030×(1705-1945) |
| Net Weight (kg) | 280 |
