Scope: Packaging in groups of food,drugs and beverages,bowl,milk tea,mosquitoes,wall paper,coaches,filters,electrical switches,preservation films,garbage bags,various materials,industrial parts and packaging of daily cosmetics.
This machine is simple in operation,reliable in quality and stable in performance.With variable frequency modulation number and stepless variable speeds.The control set of complete machine is completed by PLC,reducing the fault point.High efficient double temperature zone in heat shrink furnace,non-polar speed regulation and automatic tempersture control.Efficient hot air circulation for the quality of contraction.
Specifications

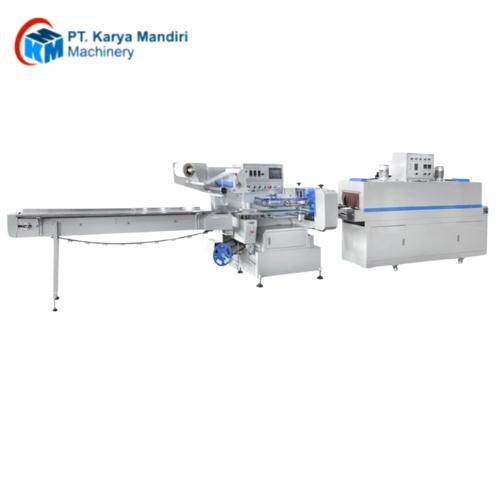

| Product name | Automatic High-speed Heat Shrinkable Packaging Machine | ||||
| Model | KPL-590/120 | KPL-590/150 | KPL-590/180 | KPL-590/210 | KPL-590/240 |
| Product length | 60-320mm | 100-450mm | 150-530mm | 180-600mm | 210-650mm |
| Product width | 10-200mm | 10-200mm | 10-200mm | 10-200mm | 10-200mm |
| Product height | 5-35mm | 35-70mm | 65-100mm | 80-130mm | 100-150mm |
| Packing speed | 30-150pcs/min | 30-150pcs/min | 30-135pcs/min | 30-100pcs/min | 30-80pcs/min |
| Film type | PVC, POF and other heat shrinkable films | ||||
| Power | Packing machine:4.75kw;
Shrink machine:13.5kw |
||||
| Voltage | Packing machine:220v 50Hz/60Hz
Shrink machine:380v 50Hz/60Hz |
||||
| Packing machine size | 4800*1170*1500mm | ||||
| Shrink machine | Dimensions:2600*600*1700mm
Furnace channel size:2300*250*200mm |
||||
| Machine weight | Packing machine:760kg
Shrink machine:380kg |
||||
