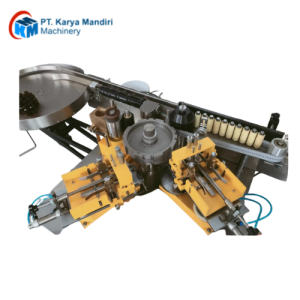

This machine use German technology with PLC control System with Feather touch Keyboard and LCD display. The MPC-JB is easy to be used , non liquid leaking and easy to change preset memory. It is suitable for medicine, food, and chemical industries. It is also Suit for plastic, glass, metal and other round containers/bottles.
Characteristics:
1,The interface and PLC control system is easy-to-use.
2, The bottle location accuracy
3, Elimination of label wastage – no container no label.
4,Glue Saving – no label no gluing device.
5,The labeling speed can be adjusted by the variable speed stepper motor according to variety bottles and labels.
6, Least change over time for change parts.
7, It can be run individual or connected with automatic liquid filling machine , rolling cap machine and aluminum foil sealing machine to complete the whole line running in one line.
Parameters
| Container Size | φ30mm-φ100mm |
| Label Size | 30mm~160mm*80mm~300mm |
| Speed | <130 bottles/minute |
| Electrical Requirements | 220V50Hz |
| Power | 0.8kw |
| Air Pressure | 0.4-0.6Mpa |
| Air Consumption | 0.2 m3/minute |
| Weight | 430kg |
| Dimension | 2400mm*940mm*1420 mm |
