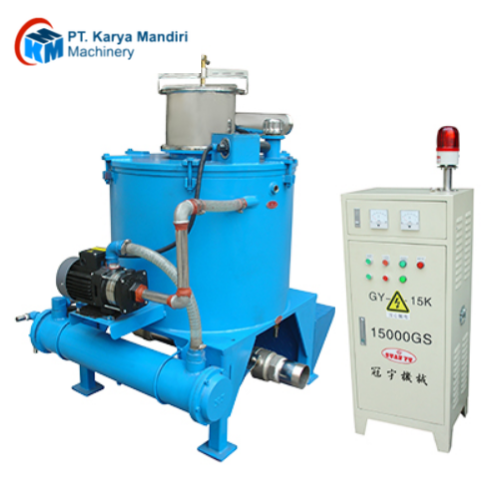

Features
- High voltage test for electrical windings is under 50 Hz, AC 2000V in 1 second, and no damage.
- The insulation resistance of electrical winding is less than 10 MΩ in cool condition (before operation).
- Use transformer oil as insulation and the temperature of oil is less than 60°C.
- The magnetic screen is made by stainless high magnetic conduction material. Magnetic performance ≥ 15 % of the excitation magnetic field.
- Frame and the surfaces which touch the raw material are made by imported stainless steel SUS 304.
- Using safe and reliable cooling circulation system which not only extends the service life of the machinery but also ensures the machinery in working order for long period of time.
- An auto – warning device is installed in the electric cabinet which offers buzzer and beacon alarm, and reduces the impact of iron removing process while machine shut down.
- The feature for combining fully and semi automation in iron removing and discharging process offers easy cleaning, swift operation and time & effort saving.
- A series of effective measures have been taken into structure designs and manufacturing processes which extend the service life of the machinery dramatically.
- The electrical equipment of this machine can fully ensure personnel safety, reliability, long working hours, and easy installation and maintenance.
Specification
- Input Voltge: 3 phase, 380 V / 415 V (depends request)
- Output Voltge: DC 180 V
- Initial Current: 55 ~ 58A
- Thermal Balance Current: 42 A
- Thertmal Balance Temperature: 75°C
- Total Power: 8 KW
- Excitation Magnetic Power: 13 KW
- Horizontal Type Vibrator: 260 kg, 1 ests (voltage depends on request)
- Intensity Of Magnetic Field: ≥ 15000 GS
- Cooling Way: Outer coolant – water, inner coolant – transformer oil
- Denagnetizing Way: Demagnetizing coil
- Capacity: 30 – 35 Cube / hr
- Weight: Net Weight 780 kgs
Application
- This machine is applicable for removing ferrous contamination in liquid form material which has been sieved from mess # 30 screens. This separator is suitable for many industries, such as ceramic, chemical, electronics and etc.
