This model is suitable for the blister packaging of pharmaceuticals in small-scale pharmaceutical plants, health supplement manufacturers, and hospital pharmacy preparation rooms.

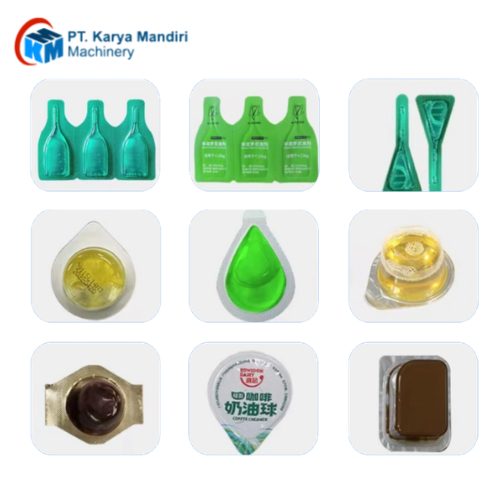

It is applicable to the packaging of items such as capsules, tablets, softgels, candies, medical devices, jams, honey, and more.
Parameters

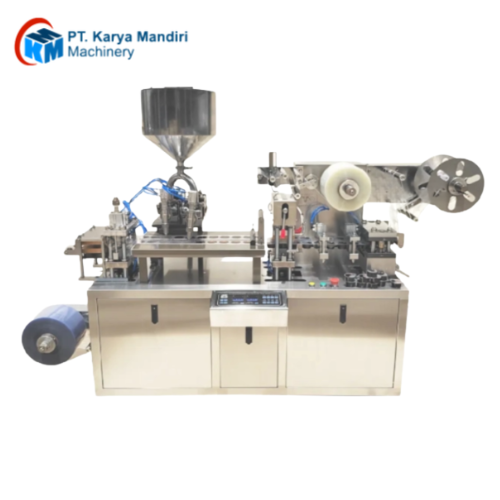

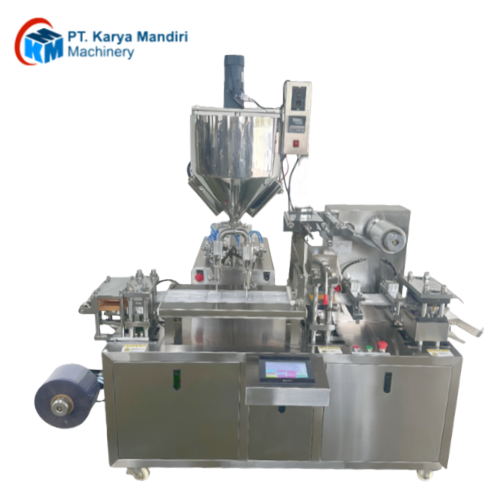

| Product name | Automatic Blister Packaging Machine for Liquid/Paste |
| Model | KDP-120 |
| Punch Frequency | 10-35times/min |
| Production Capacity | 4200plates/hour |
| Max. Forming Area & Depth | 100×135, Max. Depth 25mm( As adjusted） |
| Standard Plate Size | 80x57mm |
| Air Pressure | 0.6-0.8Mpa |
| Compressed Air Required | Air compressor≥0.3m3/min |
| Total Power Supply | 220V 50Hz 3Kw |
| Main Motor | 0.75Kw |
| Mold Cooling | Tap water or Recycling water |
| Overall Dimension | 1660x490x1155 (mm)(L*W*H) |
| Weight | Net Weight:450kg Gross Weight: 530kg |
| Noise Index | <70dBA |
| Standard travel range | 20-100mm |
