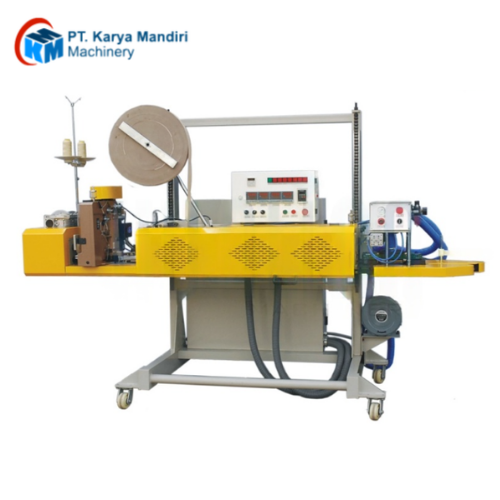

Used to close the neck of combined bags with an internal heat-sealable layer. Sequence of operations: dedusting the bag, attaching a special paper tape to the neck, pressing and heating the bag to seal the internal heat-sealable layer, sewing and cutting the thread on top of the tape.
Parameters
Voltage 380V
Power 4.5 kW
Transmission power 0.37 kW
Dust collector power 0.6 kW
Sealing unit motor power 0.37 kW
Heating power 0.5*6 kW
Sealing speed 8.5 m/min
Height from the sealing center to the floor 750-1450 mm
Temperature adjustment range 0-400 degrees
Compressed air pressure 0.6 MPa
Dimensions 2700*950*1800 mm
Net weight 450 kg
