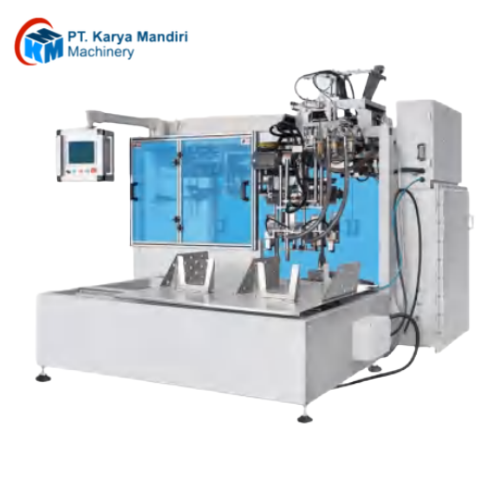

Automatic Bag Placer ZSG-200D is an automatic empty bag feeding and filling system. It intergrates bag supply, bag feeding, bag opening, filling, conveying, and air exhausting functions to achieve fully automated production. This machine is widely used in packaging lines for explosion proof applications.
Parameters
| Model | ZSG-200D |
| Voltage (V/Hz) | AC 380/50 |
| Gross Power (kW) | 2 |
| Packing Speed(bag/h) | 100-200 |
| Suitable Bag Size(L×W)(mm) | (900-1000)×(450-550) |
| Air Consumption (m3/h) | 20 |
| Packing Bag Style | Flat Bag/M-fold Bag |
| External Dimension(L×W× H)(mm) | 3110×2272×2092 |
| Packing Item Weight(kg) | 20-50 |
| Packaging Bag Material | Kraft paperbags, paper-plastic composite bags,paper-plastic woven composite bags,plasticPEbags,aluminum-plastic |
| compositebags,plasticwovenbags,etc | |
| Suitable Bag Type | One Word Flat Pocket / M Fold |
| Bag Size (L x W) (mm) | (800-900) x (400-500) |
