This machine is with vacuum function, which Enables vacuum pumping before filling which helps to extend product shelf life. And nitrogen charging systems can be customized. Full automatic finish filling pulling out the cap, vacuum pumping, quantitative filling, and pressing the capping at one step.
Parameters

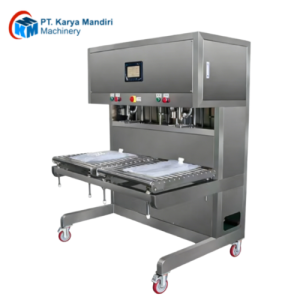

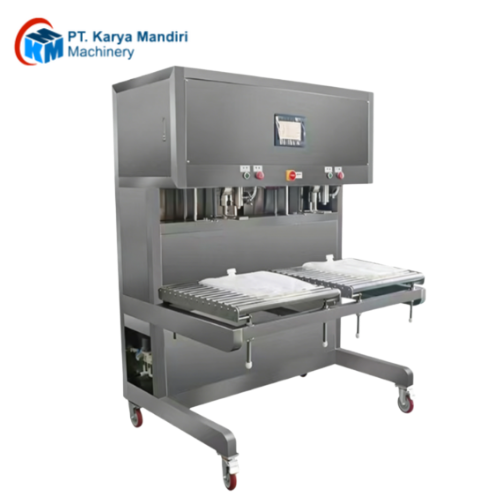

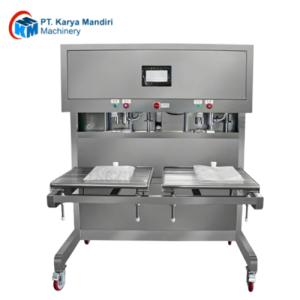

| Product name | Automatic Bag-in-Box Liquid Filling Machine | |
| Filling nozzle + capping head | 1-head filling & capping | 2-head filling & capping |
| Filling way | servo rotor pump filling (or flow-meter filling based on material) | |
| Filling scope | 1L-30L | |
| Capacity | 1-3 BPM | 2-6 BPM |
| Filling error | <±0.5% | |
| Air pressure | 0.4-0.6MPa | |
| Voltage | 220V 50/60Hz 1P | |
| Noise | ≤70dB | ≤70dB |
| Machine Power | 1.5Kw | 3KW |
| Dimension | L800×W850×H1600mm | L1400×W1060×H630mm |
