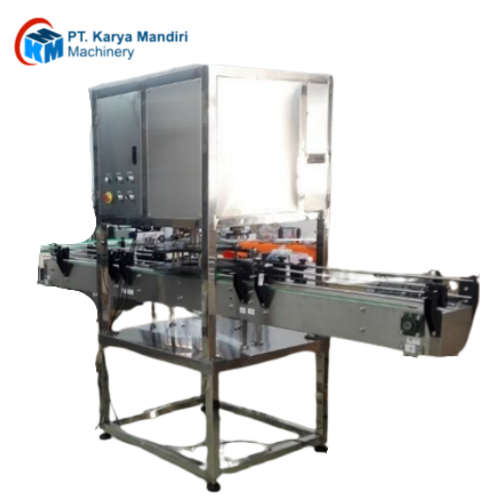

Glass Jars metal capping closing machine is suitable for all kinds of glass bottle caps, through the cylinder pneumatic principle to adjust the rotation torque, torque adjustment through the cylinder stroke adjustment, so that the rotating cover to achieve the perfect effect capping.
Features:
1.Beautiful appearance and compact structure
2.Even cap closing with good sealing performance
3.Accurate cap positioning without abrasion of the surface
4.Pneumatic control is adopted. Convenient operation and maintenance.
Parameters:
| Voltage | 220V 50Hz |
| Air supply | 0.4-0.6Mpa |
| Cap diameter | Φ 20–Φ 80mm |
| Cap height | 10-30mm |
| Capping speed | 10-40bottles/min |
| Bottle diameter | Φ35-Φ130mm |
| Bottle height | 40-160mm |
| Dimension | 2000*1000*1700mm |
