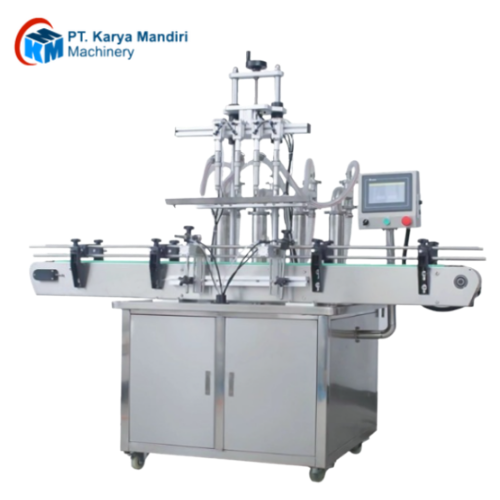

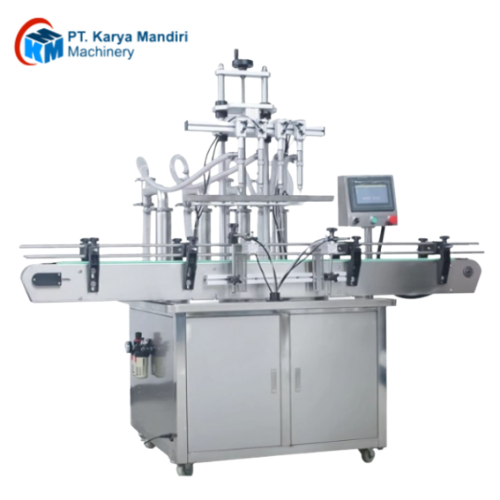

This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.
Advantage
1.Double-row piston cylinder structure, stable and reliable structure. The servo motor drives the double screw transmission mechanism and adopts PLC program control to ensure the high precision of the piston movement stroke.
2.When filling a new specification dose, the dose adjustment can be done at one time on the touch screen, and the fine adjustment of the dose of each filling head is also carried out directly on the touch screen.
3.The submerged filling mode in which the cylinder drives the filling head to operate,with the adjustable variable speed filling function, can reduce the foam production of easily foamable materials during filling and prevent bottle mouth pollution caused by material overflow.
4.Optimized in and out bottle control mode, two modes of normal/fast can be selected.In the fast bottle in and out mode, the bottle is fed in at the same time as the bottle is discharged, and there is no delay between the in and out of the bottle, which effectively improves the production efficiency.
5.Piston seals using the latest tetrafluorocarbon carburizing technology improve the wear resistance and applicability of piston seals to various materials, and effectively solve the problem of piston filling machines for emulsifiable oils, water-soluble suspensions, and high viscosity. The problem that thick materials cannot be used universally.
Parameter Data
| Model | AY-4 |
| Filling Head | 4 |
| Filling volume | 5-100ml |
| Filling type | Piston Quantitative Filling |
| Speed | 700-1000B/H |
| Filling accuracy | ±1% |
| Air pressure | 0.5–0.8Mpa |
| Power | 220V,50Hz,500W |
| Air consumption | 200-300L/min |
| Weight | 550KG |
| Machine size | 2000mm*1200mm*1750mm |
