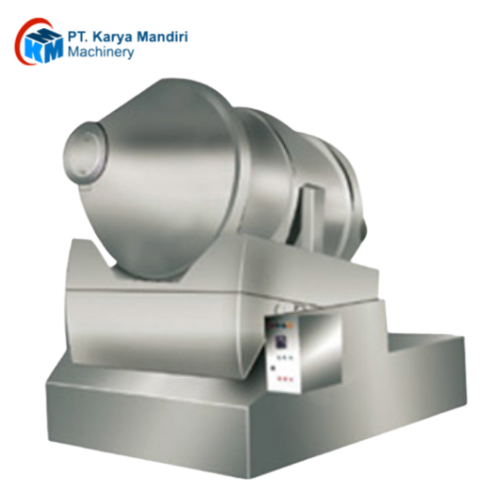

The mixers are widely used in pharmaceutical, chemical, food industries and especially suitable for mixing various solid materials with large volume. The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel centre-line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
Parameters
|
Model |
Barrel volume |
loading capacity |
Max loading weight(kg) |
swing&rotation |
total power |
Overall size |
Total weight |
Barrel weight |
|
EYH-60 |
60 |
30 |
20 |
50 |
0.4 |
700×730×990 |
115 |
15 |
|
EYH-150 |
150 |
75 |
50 |
37 |
1.15 |
890×1070×1315 |
190 |
50 |
|
EYH-300 |
300 |
150 |
100 |
30 |
1.15 |
1010×1355×1570 |
340 |
60 |
|
EYH-600 |
600 |
300 |
200 |
23.6 |
3 |
1280×1790×2060 |
1150 |
140 |
|
EYH-1000 |
1000 |
500 |
350 |
19.8 |
3 |
1560×2280×2270 |
1700 |
240 |
|
EYH-2000 |
2000 |
1000 |
650 |
16.2 |
7.4 |
1800×2640×2730 |
2600 |
430 |
|
EYH-3000 |
3000 |
1500 |
1000 |
13.8 |
11 |
2000×3100×3150 |
3500 |
620 |
|
EYH-4000 |
4000 |
2000 |
1200 |
12.8 |
13 |
2100×3310×3380 |
4100 |
700 |
|
EYH-5000 |
5000 |
2500 |
1500 |
11.9 |
15 |
2260×3590×3680 |
4800 |
780 |
|
EYH-6000 |
6000 |
3000 |
1800 |
11.2 |
18.2 |
2400×3790×3870 |
6100 |
1100 |
|
EYH-8000 |
8000 |
4000 |
2400 |
10.4 |
22 |
2600×4080×4150 |
7500 |
1400 |
|
EYH-10000 |
10000 |
5000 |
3000 |
9.4 |
30 |
2900×4460×4370 |
9500 |
1650 |
