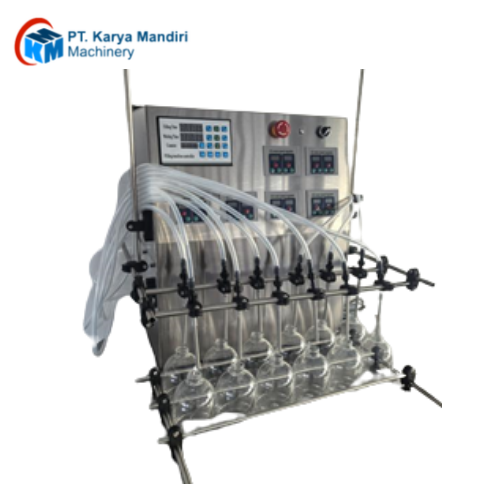

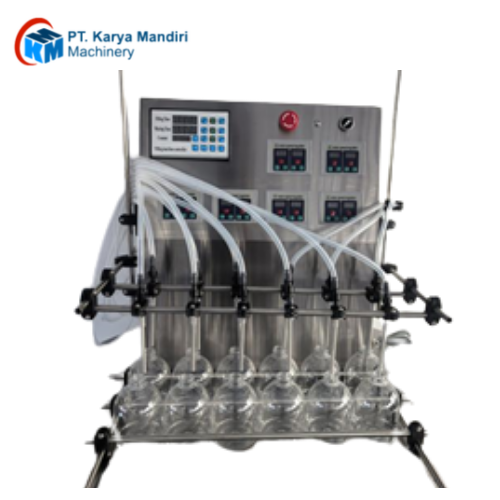

The 12 nozzles machine is with multiple filling nozzle which can improve filling efficiency greatly,we also can customize for other numbers of nozzles like 2/4/6/8/10 nozzles. Each filling nozzle can be controlled separately. It is suitable for filling low viscosity liquid without particle like water,juice,milk, perfume,essential oil, etc.
This machine is widely used in food,beverage,cosmetics and daily chemical industries.
Parameters
| Machine name | 12 nozzles diaphragm pump liquid filling machine |
| Voltage | 220V/110V 50-60HZ |
| Rated power | 300W |
| Rated current | 2.5A |
| Filling range | 10-5000ML or customize |
| Maximum suction distance | 1.5M |
| Maximum flow rate | 5L/MIN(each pump) |
| Repetitive error smaller than | 0.5% (depending on the density of product) |
| OD of filling nozzle | OD 6mm |
| Machine size | 510*300*600mm |
| Package weight | 50 kg |
