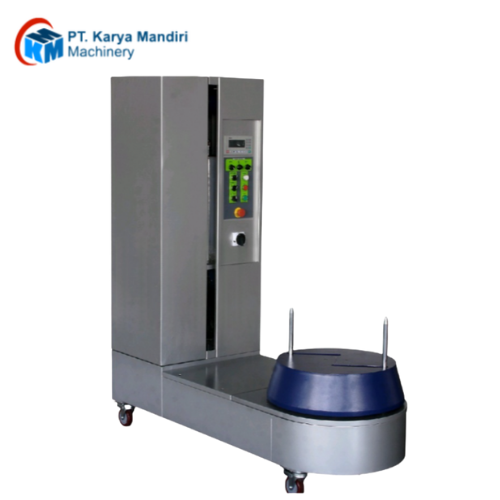

The XL-01 baggage wrapper is a machine for automatic baggage wrapping in stretch film under the control of an operator. In fact, according to the operating principle, it is a narrow-focused pallet wrapper. Currently, such devices have found wide application in airports, as passengers are increasingly concerned about the safety of their baggage transportation, save time, and reliable packaging allows you to preserve the appearance of the suitcases and bags themselves. Baggage wrappers are mobile, compact in size, and easy to operate. Pre-stretching of the film up to 200%. The operating principle of such a packer is very simple: the operator places the baggage on the platform, adjusts the vertical rods to ensure packaging in accordance with the size of the baggage, manually stretches and secures the film. The baggage is packed in 3-5 layers of film. After finishing, the operator cuts the film and removes the packed baggage.
Advantages
Economical film consumption
Vertical limiters can be adjusted depending on the size of the baggage
Film tension adjustment
Wrapping time adjustment
Platform rotation speed 20 rpm
One operator is enough to operate the machine
Technical characteristics of the XL-01 series baggage wrapper
Specifications
Voltage (V) 220
Power 0.75 kW
Capacity 60 kg (maximum)
Maximum size of the wrapped object (L*W*H) (250-1200)* (20-400)* (200-850)
Rotation speed 0-20 rpm.
Maximum width of film used 500 mm
Film thickness 17-25 microns
Film stretch 100-250%
Film core diameter 50-76 mm
Film roll weight About 17 kg
Productivity 100-120 pcs/hour
Noise level 75 dB
Max. film roll winding diameter 180 mm
Power source 220 V
Machine dimensions 1600*600*1740
Weight 150 kg
