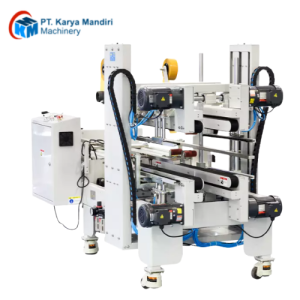

Edges Case Automatic Carton Sealer Packaging Machine JFX-6080B

JFX-6080B edges carton sealer is designed to seal the edges of top and bottom flaps by applying adhesive tape
Cost effective, high speed
Easy size changeoverst is especially ideal for applications that require high degree of leak-proofness
For integration into carton sealer to form unmanned production line or as stand alone machine

MODEL	JFX-6080B
Voltage (V/Hz)	AC 380/50 220/50
Power (W)	1100
Air Compressor (Mpa)	0.5-0.6
Min. Carton Size (L×W×H)(mm)	320×200×180
Max. Carton Size (L×W×H)(mm)	800×600×600
Sealing Speed (m/min)	5-10
Type of Adhesive Tape	Bopp, water-free adhesive tape, PVC adhesive tape
Width of Adhesive Tape (mm)	60, 76
Package Weight (kg)	2.5-30
External Dimensions (L×W× H)(mm)	2155×1365×1580
Height of Table (mm)	650-750
Net Weight (kg)	550
Max. Conveyor Load(kg)	30
