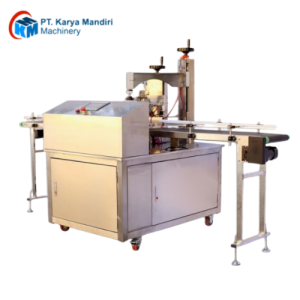

This equipment is designed for tape sealing of tank containers. In today’s society, where labor costs are continuously rising, the use of tape sealing equipment significantly reduces labor expenses. Furthermore, the products manufactured using this equipment exhibit superior aesthetics, consistent quality, and higher efficiency—advantages that are incomparable to those achieved through manual production.
Parameters
Operating power supply: 220V/50Hz
Gas supply pressure: 0.6–0.8 MPa
Equipment housing material: 304 stainless steel
Operation Display: ViRION Touchscreen
PLC Controller: Mitsubishi
Sealing speed: 10–30 pcs/min (theoretical); actual speed is influenced by factors such as the size and shape of the can/box, as well as the sealing tape used.
Minimum diameter of the sealed end of the cylindrical can: 60 mm
Maximum diameter of the seal for the cylindrical tank: 220 mm
Minimum rectangular can: diagonal> 60 mm
Largest rectangular can: diagonal <220 mm
Minimum seal height: from the bottom of the can/box to the junction of the can lid> 20 mm
Maximum seal height: Total height of can/box <220 mm
Total equipment power: 1.4 kW
Weight: 350 kg
Dimensions: Machine + conveyor belt: 3300*1200*1500
Host: 880*1200*1500
