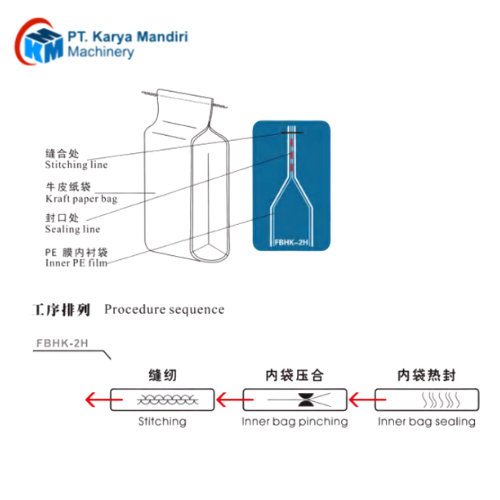

Automatic Sealing and Sewing Packing Machine FBHK-2H is suitable for packaging heavy bags weighing between 25-50 kg, suitable for single layer kraft paper bags covered with PE or PP, paper plastic composite bags, or paper woven composite bags. Automatically complete the dust removal of the packaging bag opening, intermittent sealing of the inner bag, stitching, thread cutting and counting processes according to the program.
Adopting advanced technology that intergrates light, machinery, and electricity, automation and efficiency have been achieved. The inner bag seal adopts a labyrinth seal and the air inside the bag can be discharged through the S-shaped labyrinth gap. The sealed packaging bag has excellent sealing performance, which can prevent dust, moth, and pollution, ensuring proper protection of the packaging.
Parameters :
| Voltage (V/Hz) | AC380/50 (3PH) |
| Gross Power (KW) | 3,5 |
| Transmission Power (KW) | 0,75 |
| Motor Power (KW) | 0,37 |
| Heating Power (KW) | 1 x 2 |
| Sealing Speed (m/min) | 8,5 |
| Air Source Pressure (Mpa) | 0,6 |
| Temperature Range (°C) | 0-300 |
| Height from Center of Seal to Floor (mm) | 800-1400 |
| External Dimensions (L× W× H) (mm) | 1820×1185×1800 |
| Weight (kg) | 540 |
