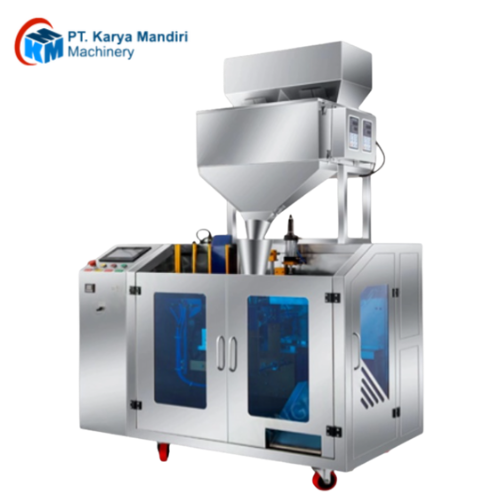

This packing machine suitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip,peanut. popcorn, seed and sugar Etc .
This granular packing machine is used to snack food, hardware, salt, MSG, chicken essence, seeds, rice, pesticide, fertilizer rice, veterinary medicine, feed premix, additives, and other granular quantitative packaging.
Features
- Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
- Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
- External film releasing mechanism: simpler and easier installation of packing film.
- Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
Advantage
- Equipped with stable filler.
- High filling accuracy, fast packing speed, easy to operate and adjust.
- Liner filling and sealing.
- Stainless Steel Construction.
Applications
Suitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip,peanut. popcorn, seed and sugar Etc .
Parameter Data
| Machine size | 133*75*210cm | 155*75*210cm |
| Packing range | 5-1000g | 5-2000g |
| Voltage | 220V/50HZ/1500W | 220V/50HZ/1500W |
| Machine weight | 350kg | 350kg |
| Packing speed | 2-25bag/min | 2-25bag/min |
| Bag size | L:8-30cm | L:12-40cm |
| W:6-20cm | W:12-30cm | |
| Number of working stations | 1-2Nos | 1-2Nos |
| Air consumption | <1.0m3/min | <1.0m3/min |
