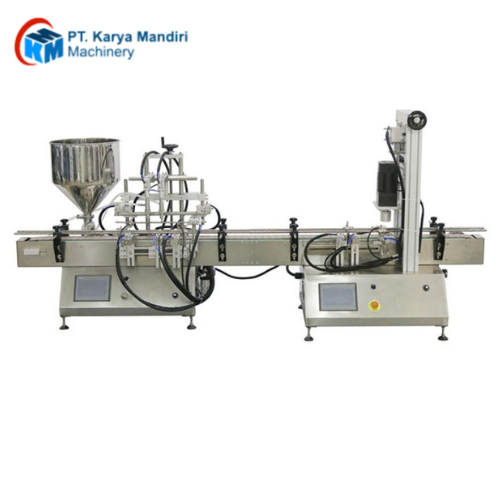

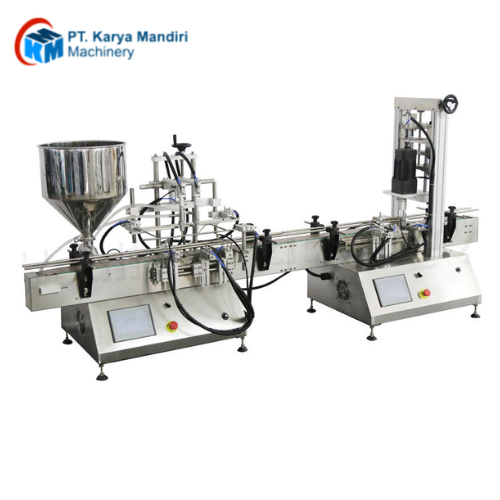

Desktop Liquid Filling and Capping Machine is an all-in-one compact production line designed for small to medium-sized businesses. This multifunctional unit integrates automatic filling and capping making it ideal for packaging a wide range of liquid products such as honey, shampoo, essential oils, lotion, and sauces. Built with food-grade 304 stainless steel and equipped with a smart PLC control system and touchscreen interface, the machine delivers high filling accuracy and reliable capping. It’s an excellent solution for food, cosmetics, daily chemical, and pharmaceutical industries seeking efficiency and flexibility in limited spaces.
Features
- Integrated 2-in-1 System : Streamline your workflow with a single unit that performs liquid filling and capping—designed for small-batch operations in food, cosmetics, chemicals, and pharmaceuticals.
- Desktop-Size, Industry-Grade : Compact enough for startup workshops, yet built with durable 304 stainless steel. Ideal for honey, essential oils, shampoos, sauces, and more—whether round or custom bottles.
- Modular, Flexible, and Easy to Use : Each function runs independently for easy upgrades and maintenance. Tool-free adjustments, touchscreen control, and PLC interface ensure smooth operation even for multi-product runs
- Precise, Clean, and Customizable : Choose between piston or peristaltic pumps for accurate filling (±0.5%). Auto-positioning capper and label sensor ensure consistent capping and neat labeling across varied bottle shapes.
Parameters :
| Model | GT2T-280 |
|---|---|
| Power supply | 220/110V 50/60HZ |
| Output | 0-16 Bottle/min |
| Filling range | 20-280ml or can be customized |
| Hopper | 40L |
| Filling Head | 2 |
| Dimension | 1300*900*1300mm |
| Weight | 180KG |
| Model | QDX-500 |
|---|---|
| Power supply | 220/110V 50/60HZ |
| Power | 600W |
| Bottle diameter | 20-120mm |
| Cap diameter | φ20-φ50mm |
| Capping speed | 10-30 bottles/min |
| Machine Size | 1300*900*1400mm |
| Weight | 100KG |
