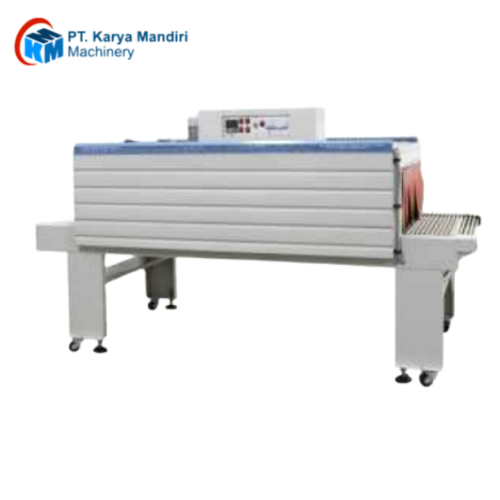

BS-9035L shrink tunnel is designed in hot-wind & upper-cyclone structure intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.
Features:
– Intelligence temperature control
– Strong turbine motor.
– Stainless steel mesh type conveyor and roller type conveyor are available.
– Power saving and high efficiency (over 15% power saving)
Application:
1. BS-9035L shrink tunnel is applied to heat shrinkable film such as PVC, PE, etc.
2. BS-9035L shrink tunnel is suitable for packing a single large object or combined object consisting of several small articles.
3. To use in the place where there is enough space, such as factory, and warehouse, etc.
Parameters
| MODEL | BS-9035L |
| Voltage (V/Hz) | 380/50(3P) 220/60(3P) |
| Power(kw) | 43 |
| Loading (kg) | 20 |
| Conveying Speed (m/min) | 0~10 |
| Tunnel Size(L×W×H)(mm) | 2000×900×350 |
| External Dimensions(L×W×H)(mm) | 2700×1200×1550 |
| Net Weight (kg) | 500 |
